Rol Technology Mobile energy storage is a new energy enterprise dedicated to the research and development, sales and service of lithium battery energy storage systems and power lithium battery systems. The company possesses a number of core technologies in BMS technology, inverter technology and key lithium battery processes.
Order(MOQ) :
1Payment :
T/TLead Time :
15
Rol Technology Mobile energy storage is a new energy enterprise dedicated to the research and development, sales and service of lithium battery energy storage systems and power lithium battery systems. The company possesses a number of core technologies in BMS technology, inverter technology and key lithium battery processes.
On-demand power expansion and free assembly
15 layers of protection Easy installation
Long service life
Compatible with 20* mainstream inverters worldwide

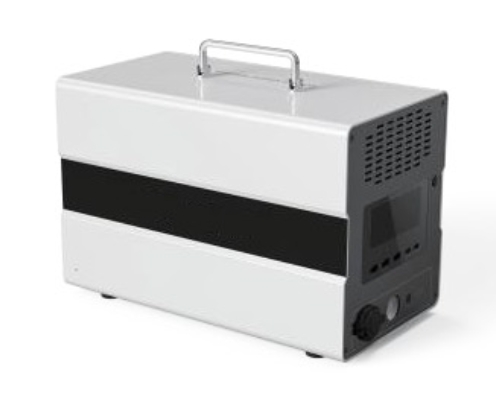

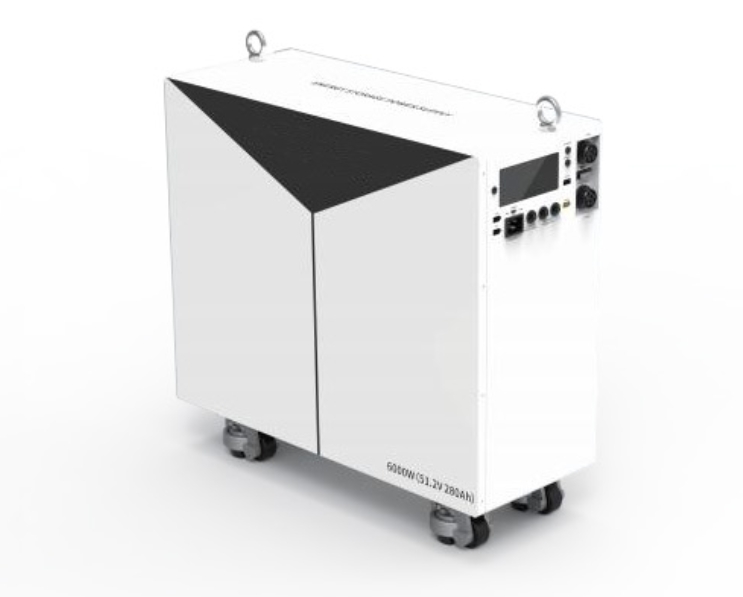

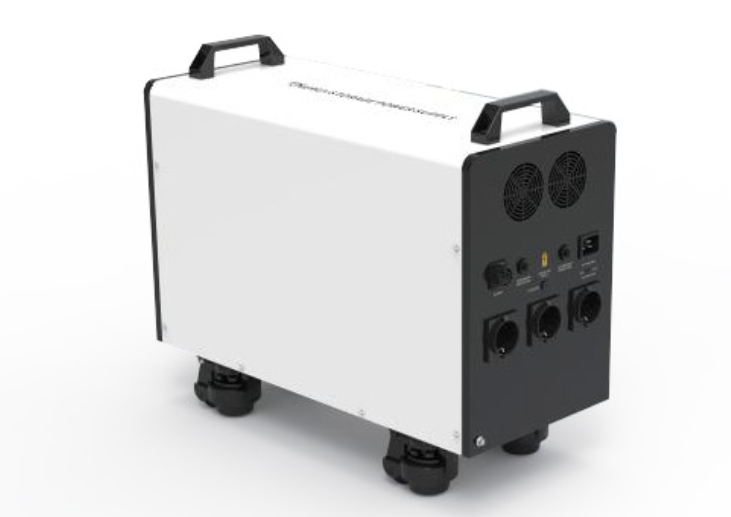

| Product Name: | Y1600 | Y4600 | T14K |
| System parameters | |||
| Cell type | LFP | LFP | |
| Battery capacity: | 1.1kWh | 4.6kWh | 14.3kWh |
| Rated output power: | 1600W | 3600W | 6000W |
| Cycle times (@25℃C): | / | ≥6000 | / |
| Input parameters | |||
| Mains power charging: | 220-240V~1000W | 220-240V~2200W(MAX) | 220-240V~2200W(MAX) |
| Fast charging input: | / | 220-240V~3400W(MAX) | 220-240V-6000W(MAX) |
| Vehicle charging input: | 12V=8A96W | 12V=8.5A 100W | 12V=10A 120W |
| Photovoltaic charging input: | 12-58V=25A 800W | 12-150V=25A 2400W | 12-150V=30A 3000W |
| Output parameters | |||
| USB-A: | 5/9/12V=18W MAX(x3)，QC3.0 | 5/9/12V=18W MAX(x3)，QC3.0 | / |
| Type-C: | 100Wx1，PD3.060Wx1，PD3.0 | 100Wx1，PD3.060Wx1，PD3 | / |
| Vehicle charging output: | 12V=10A 120W | 12V=10A 120W | / |
| DC output: | / | 24V=10A240W |
12V=30A 360W 24V=20A 480W |
| AC output: | 230V~50Hz，1600W，ACx2 | 230V~50Hz，3600W，ACx3 | 230V~50Hz，6000W，M29-4 |
| General parameters | |||
| Other functions: | Light | / | / |
| APP: | Support | Support | Support |
| Dimensions (Width x Depth x Height) : | 370x200x262mm | 550x250x476mm | 670.7x257x664.5mm |
| Weight: | ≈13.25kg | ≈45kg | ≈127kg |
