Hybrid Solar Systems Description

Hybrid Solar System: Customizable Off-Grid Solution (5-∞kW)

• Full-Scale Customization

Our system is fully configurable to match your specific requirements:

Scalable Power Output: Choose from 5kW to ∞ kW configurations, or mix/match components to build a system that fits your energy consumption (e.g., 8kW for a small home, 15kW+ for a business).Tailored Component Selection: Customize the number of solar panels, battery capacity (expandable lithium-ion battery banks with mobile casters for easy mobility), and inverter type to align with your load demands, budget, and space constraints.

Geographic & Environmental Adaptability: Optimize panel wattage, tilt angle, and weather resistance (waterproof, dustproof, UV-resistant) based on your location’s sunlight conditions, climate, and installation environment.

• Hybrid System Flexibility

• Cost & Eco-Friendly Benefits

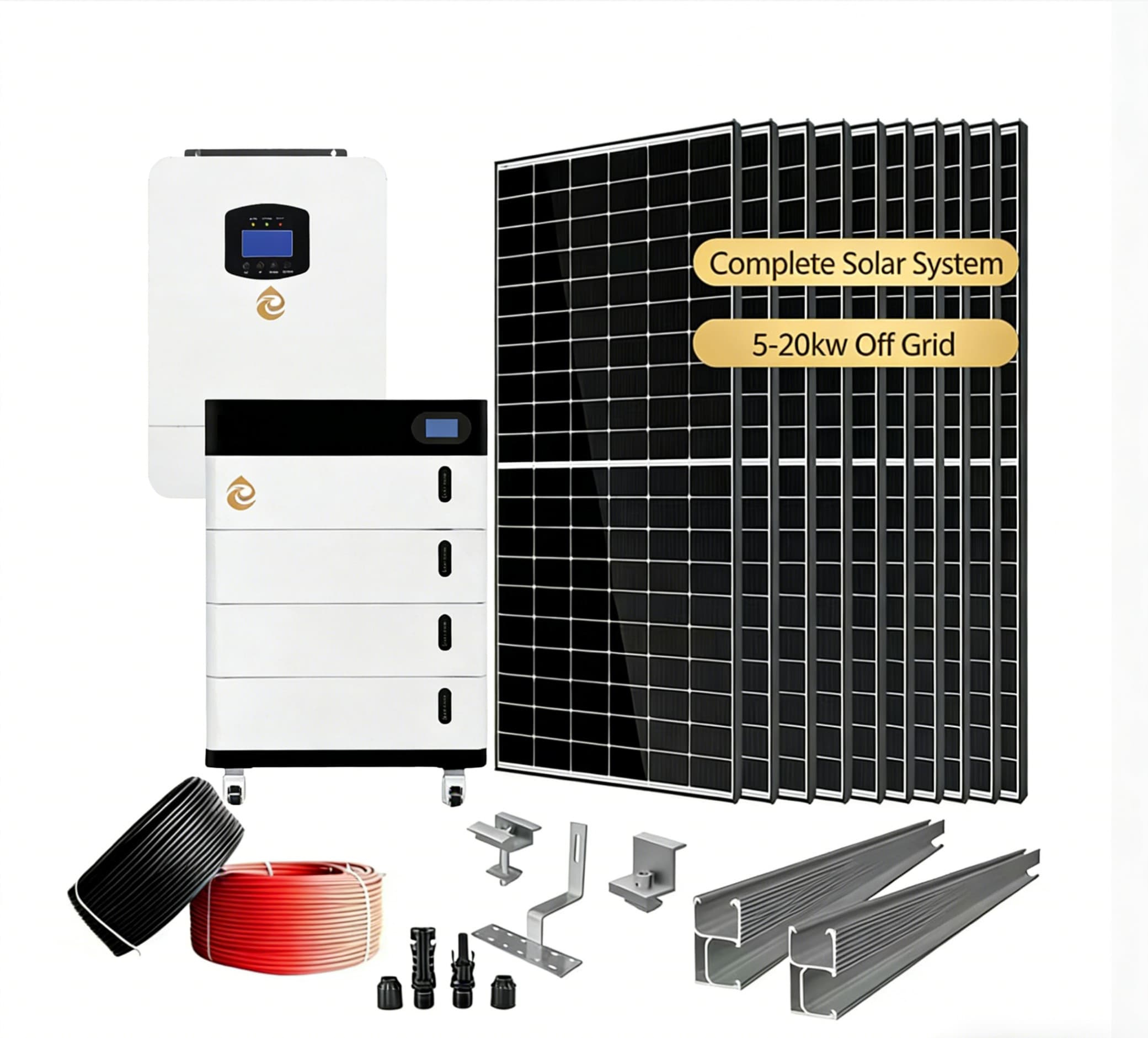

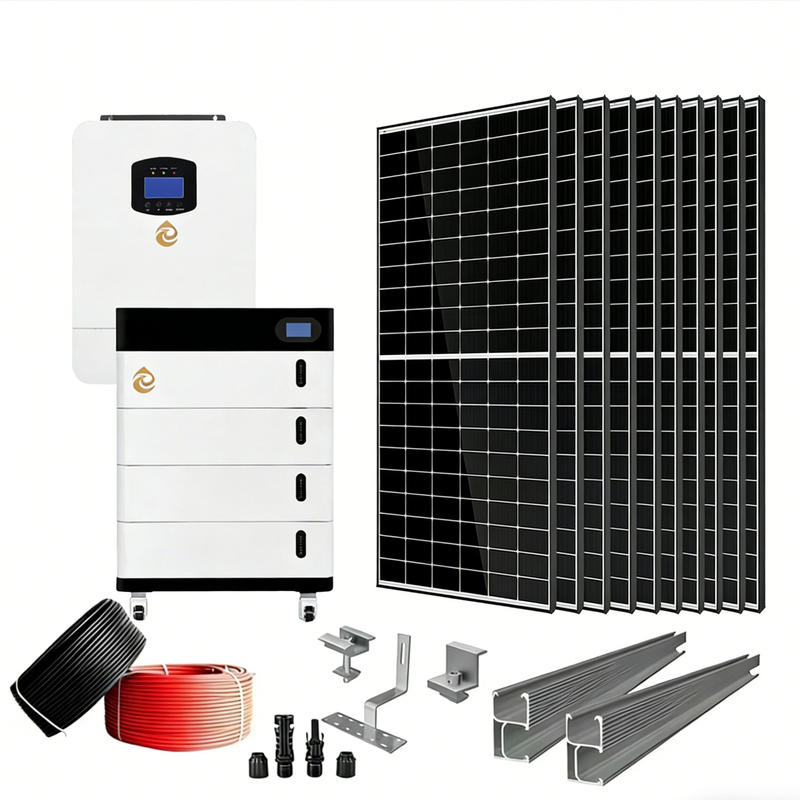

System Overview

Specifications of the products

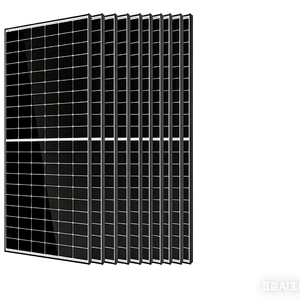

• Photovoltaic panel

•  25 years Warranty •  Highest conversion efficiency of 20% •  Anti-reflective and anti-soiling surface power loss from dirt and dust •  Excellent mechanical load resistance •  PID Resistant,High salt and ammonia resistance

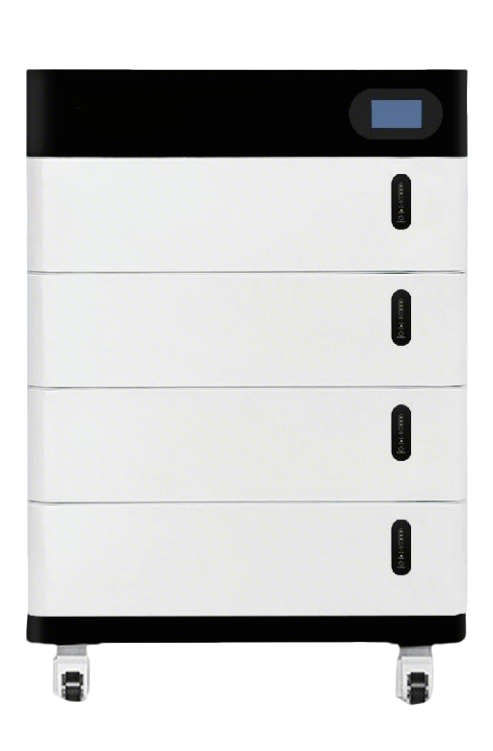

Box-type energy storage battery

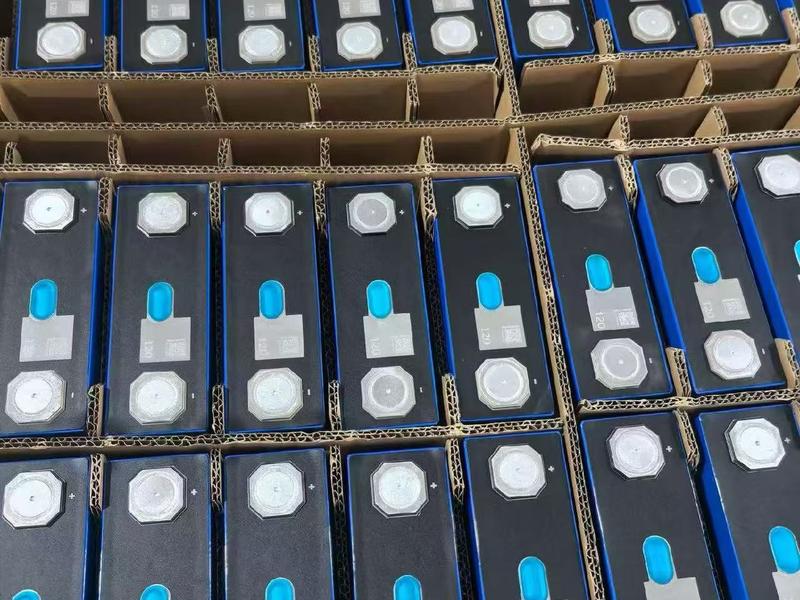

•  GEL Battery •  Lithium Battery •  Without a battery bank (or a generator) it'll be lights out by sunset. A battery bank is essentially a group of batteries wired together

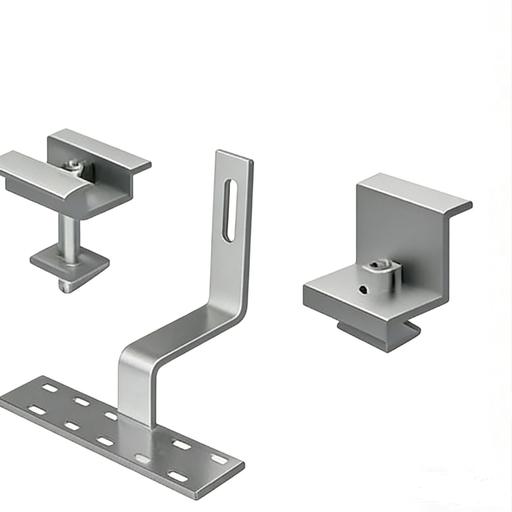

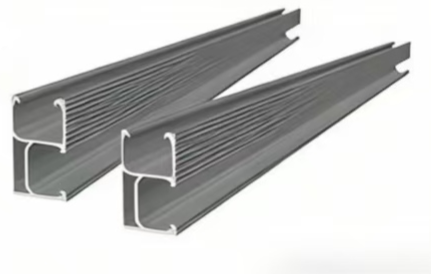

Photovoltaic system bracket

•  Residential roof(Tilt roof) •  Commercial roof(Flat roof&workshop roof) •  Ground solar mounting system •  Vertical wall solar mounting system •  All aluminum structure solar mounting system •  Car parking solar mounting system •  Aluminum components    lateral pressure assembly    Medium voltage component

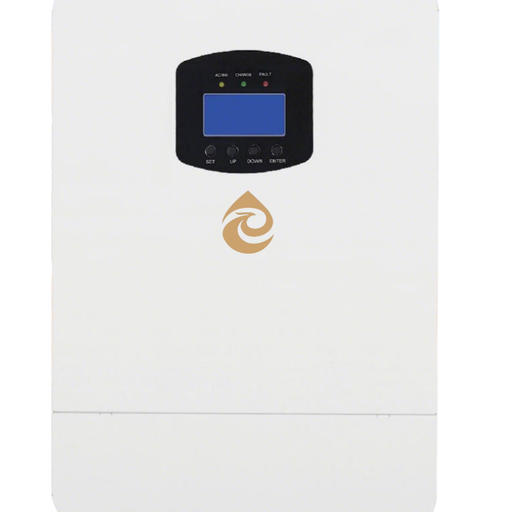

Inverter

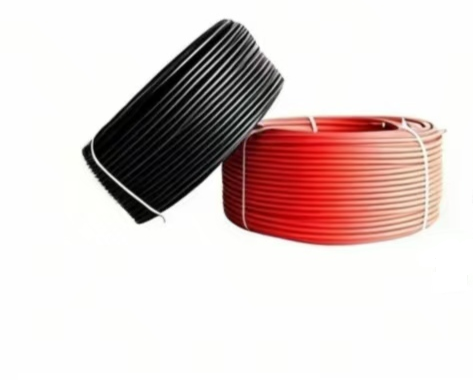

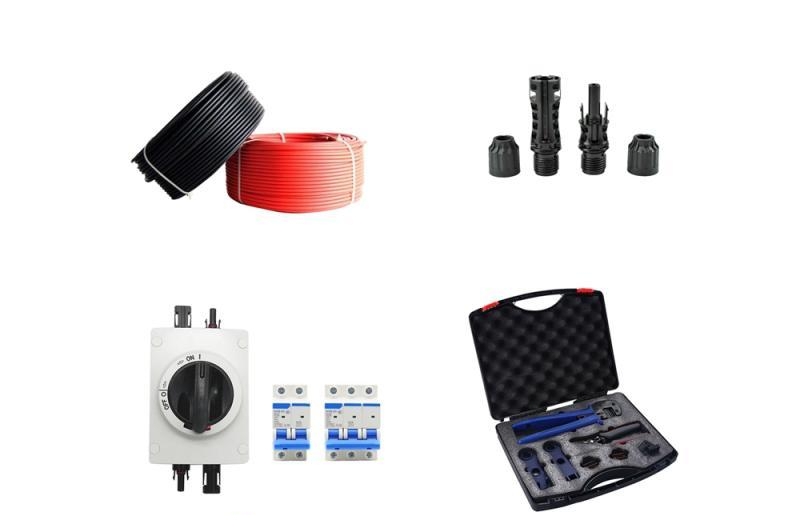

Positive and negative cable

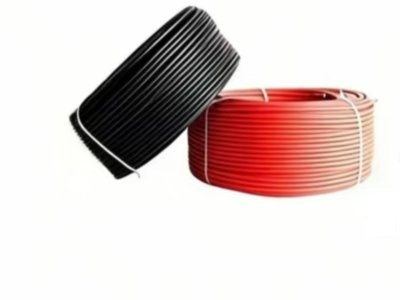

•  PV cable 4mm2/6mm2/10mm2,etc •  AC cable •  DC/AC switches •  DC/AC breakers •  MC4 connector •  AC/DC Combiner box •  AC distribution box

Hybrid Solar Systems Description FAQ

Q1: What is hybrid solar system?

A: Hybrid solar system combines PV modules, hybrid inverter and battery energy‑storage unit. It can connect to public grid and also work in off‑grid mode. It stores surplus solar power into batteries for night‑time or grid‑outage usage. It is widely applied in residential houses, commercial buildings, remote sites and solar‑storage integrated projects.

Q2: Main system components

A: Solar PV panels, hybrid inverter, lithium‑iron‑phosphate battery pack (BESS), BMS battery management system, solar mounting brackets, DC combiner box, AC distribution cabinet, surge protection devices, cables and metering devices.

Q3: How does hybrid solar system work?

A: During daytime, PV panels generate electricity. On‑site loads consume power first. Excess energy charges battery packs. If batteries are fully charged, surplus power can export to grid. When sunlight is insufficient or grid power fails, batteries discharge to supply local loads. It supports both grid‑tied and backup off‑grid operation.

Q4: Difference between hybrid system vs on‑grid system

A: Standard on‑grid system cannot run during grid blackout. Hybrid system with battery storage provides backup power when grid is down. Hybrid system has higher initial investment, but improves self‑consumption rate of photovoltaic power.

Q5: Common capacity configuration

A: Residential hybrid: 3kW‑15kW inverter, 5kWh‑30kWh battery. Commercial hybrid: 20kW‑500kW inverter, 50kWh‑1MWh+ battery. Capacity matching shall consider local solar irradiance, daily load consumption and backup‑power demand.

Q6: Working modes

A: 1. Grid‑tied mode: normal grid connection, charge battery by PV or grid, export surplus power. 2. Backup / off‑grid mode: island operation when grid fails, battery and PV supply critical loads. 3. Peak‑shaving mode: charge battery at low‑tariff grid time, discharge during high‑price‑peak hours to cut electricity cost.

Q7: Safety protection functions

A: Over‑charge / over‑discharge, over‑current, short‑circuit, over‑voltage / under‑voltage protection, anti‑islanding, insulation monitoring, surge & lightning protection. Battery BMS manages cell status; emergency‑stop button is equipped.
