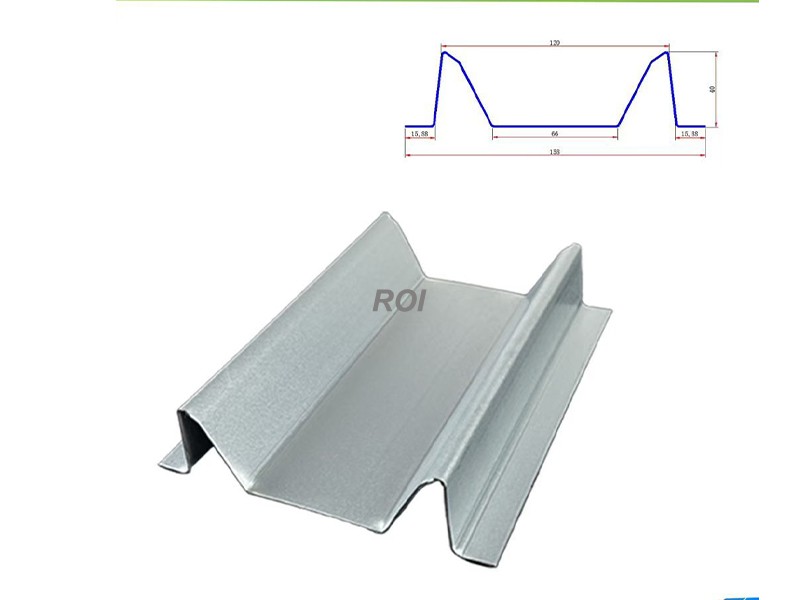

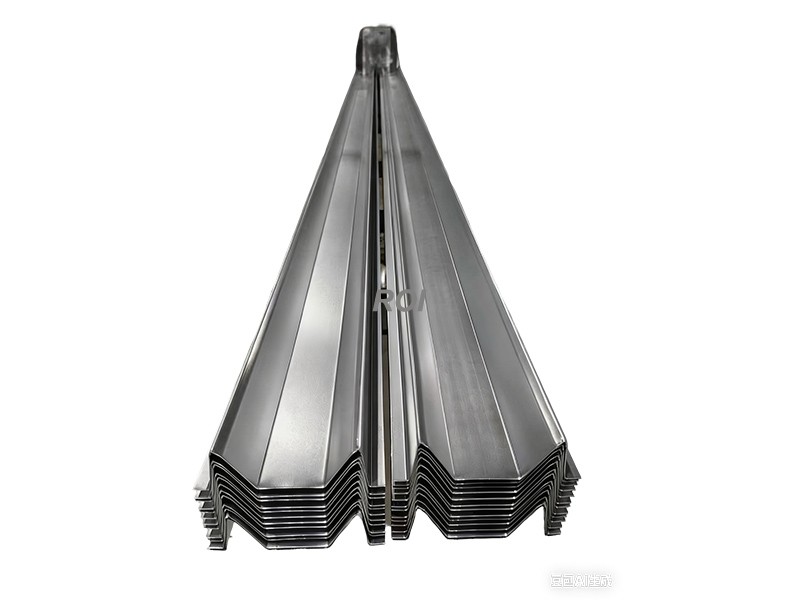

Rol Technology BIPV water gutter is not only a key part of Solar mounts system but also an indispensable link in ensuring the stable operation and service life of the entire BIPV. It integrates the functions of water drainage, component support and structural waterproofing, perfectly combining photovoltaic power generation.
Payment :
T/TProduct Origin :
ChinaLead Time :
7-10 days

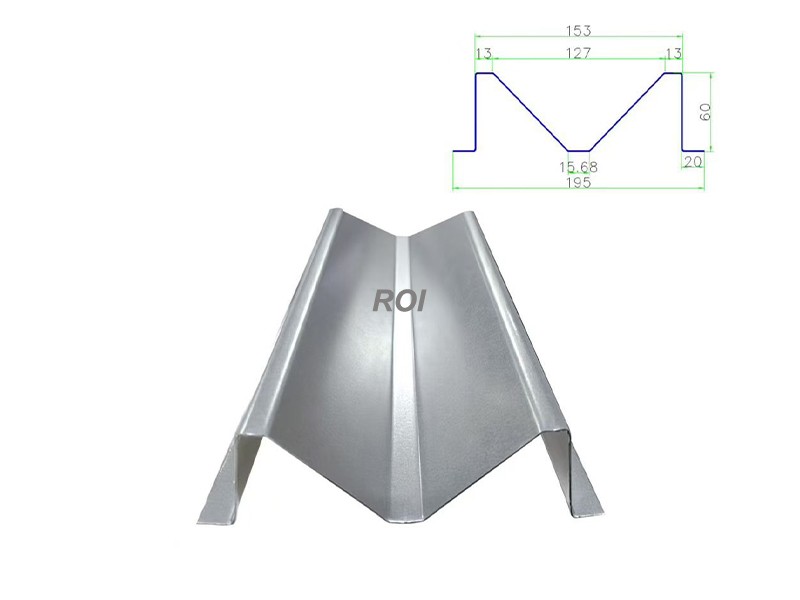

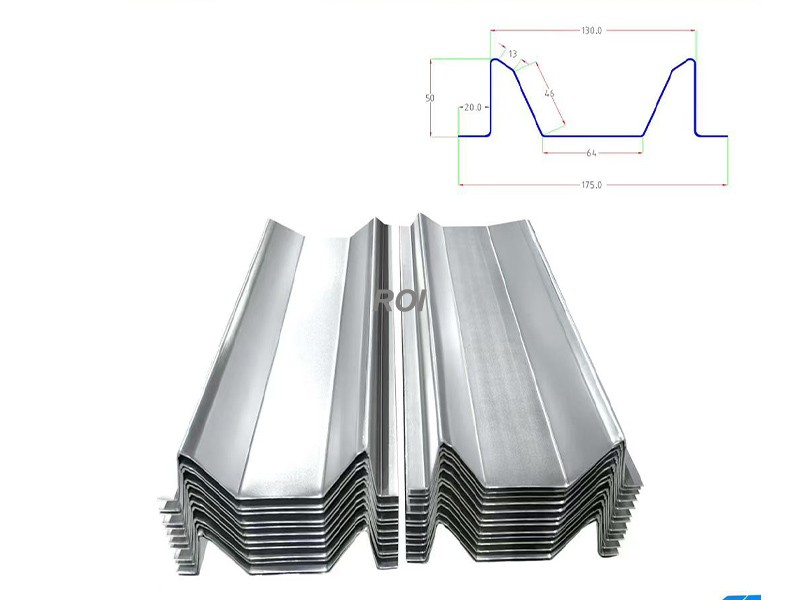

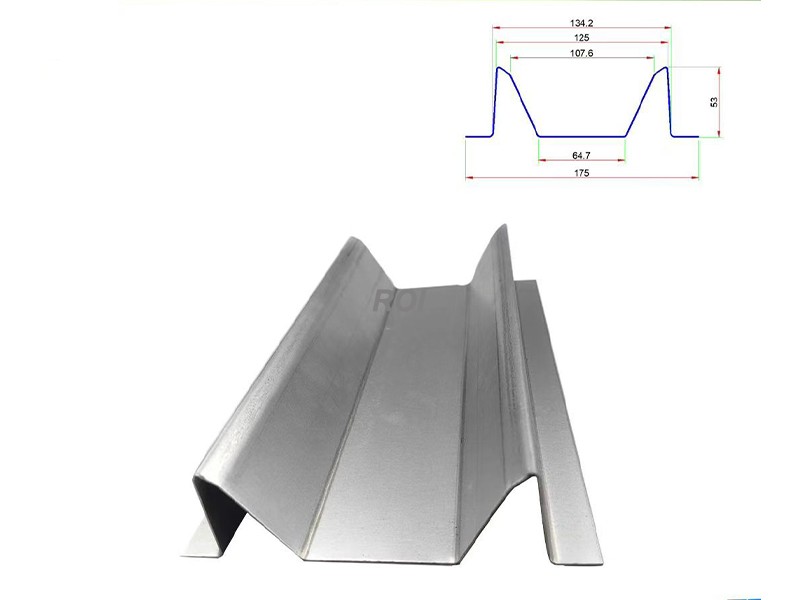

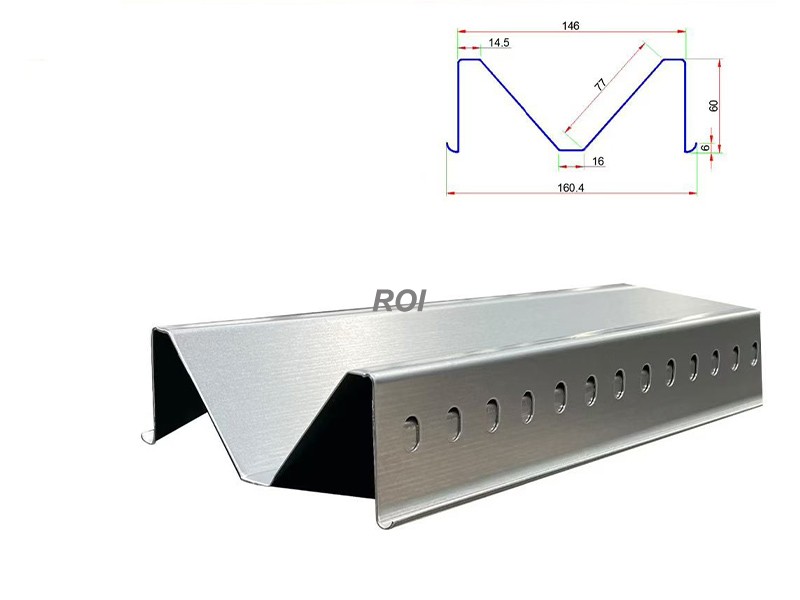

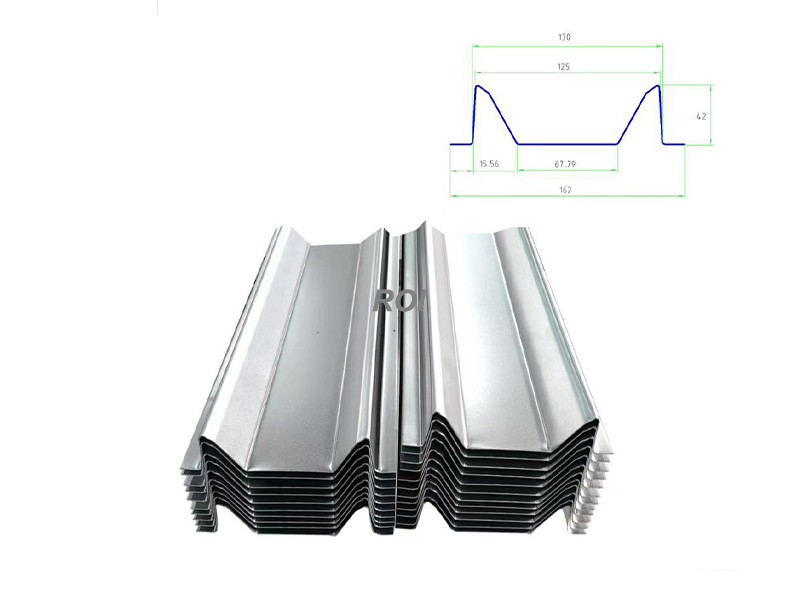

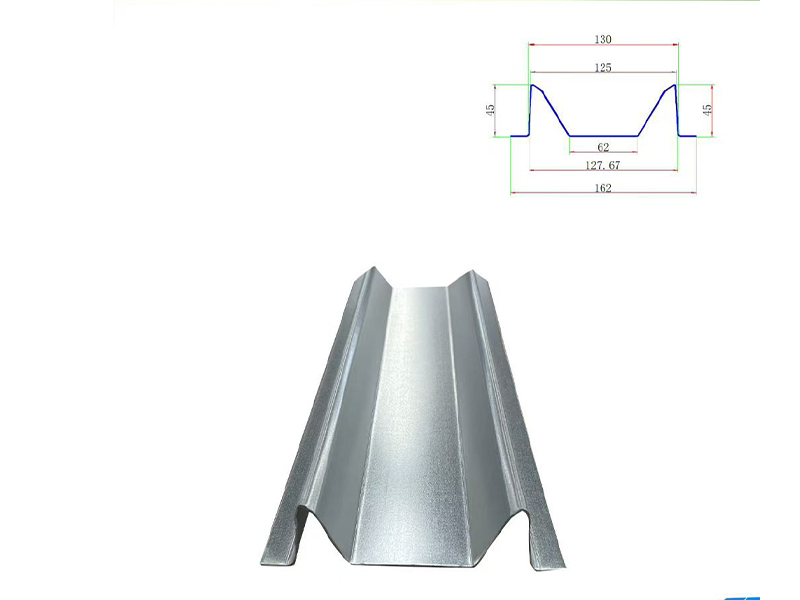

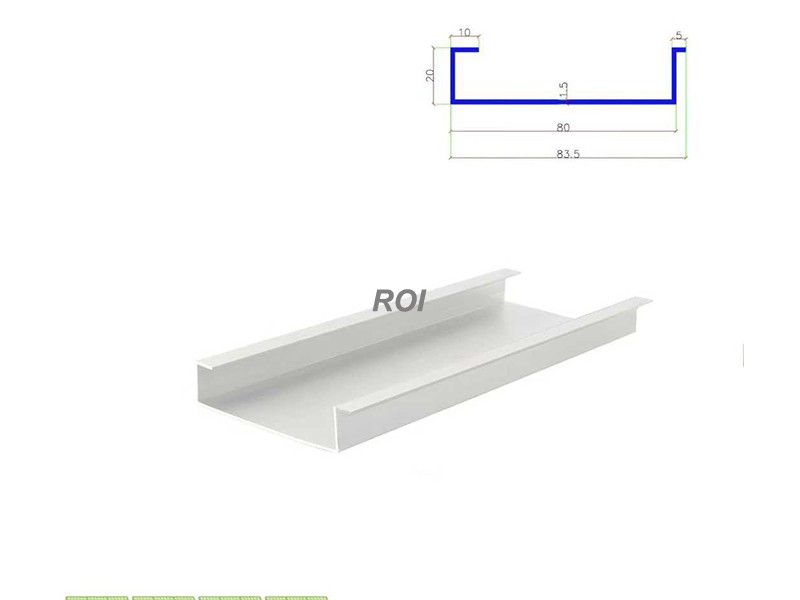

Rol Technology BIPV water gutter is used to collect and discharge rainwater falling on the surface of photovoltaic modules, preventing rainwater, which could cause damage to the building structure and electrical components.
Anti-corrosion.
Anti-rust.
Easy installation.
Long service life.
It can be designed to be waterproof and non-waterproof according to the customer's favorite. The specialized waterproof components can effectively drain rainwater, providing excellent protection against the rain and water leakage.
BIPV Water Gutter for BIPV Solar Mounts FAQ
Q1: What is BIPV water gutter?
A: BIPV water gutter is a special drainage component for building‑integrated photovoltaic mounting systems. It is installed between BIPV panels to collect and drain rainwater, guiding water flow away from the PV roof surface. It realizes waterproofing and drainage together with BIPV modules and mounting profiles.
Q2: What material do you use for BIPV water gutter?
A: Main body adopts high‑strength anodized aluminum alloy. Matching rubber EPDM sealing gaskets are supplied together. Good UV‑resistance, anti‑corrosion, adapts to coastal, rainy and high‑temperature outdoor environments.
Q3: What is its core function?
A: Collect rainwater from BIPV panel gaps, realize orderly drainage; prevent rain leakage at panel joints; block dust and debris accumulation; protect building roof structure underneath, replace traditional roof waterproof tiles.
Q4: Which scenarios is it applicable to?
A: Specially designed for BIPV solar carport, BIPV rooftop canopy, factory‑warehouse BIPV roofing projects. Matches our BIPV mounting system.
Q5: Can it prevent water leakage?
A: The gutter cooperates with EPDM sealing strips to form complete drainage‑waterproof system. Correct installation according to engineering instructions is required to achieve good leak‑proof performance.
Q6: Can sizes be customized?
A: Gutter width, height and length can be customized based on BIPV panel dimension and project slope requirement. Standard sizes are in stock for quick delivery.
Q7: Is it compatible with other brands’ BIPV mounting profiles?
A: Optimized for our own BIPV mounting system. If matching third‑party profiles, please provide section drawings for compatibility confirmation in advance.
Q8: How about installation?
A: Modular design, connects with BIPV mounting profiles directly. Adopt splicing joints for long‑length arrangement. No complex welding on site.
Q9: What slope is required for BIPV gutter drainage?
A: Suggested minimum roof slope ≥5°, to guarantee smooth rainwater discharge and avoid water ponding.
