Accessory for Solar Mounting Systems FAQ

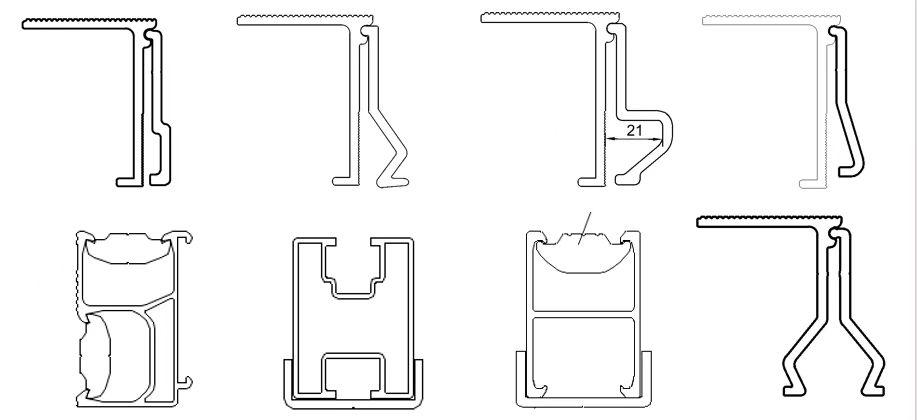

Q1: What is clamp for solar mounting systems?

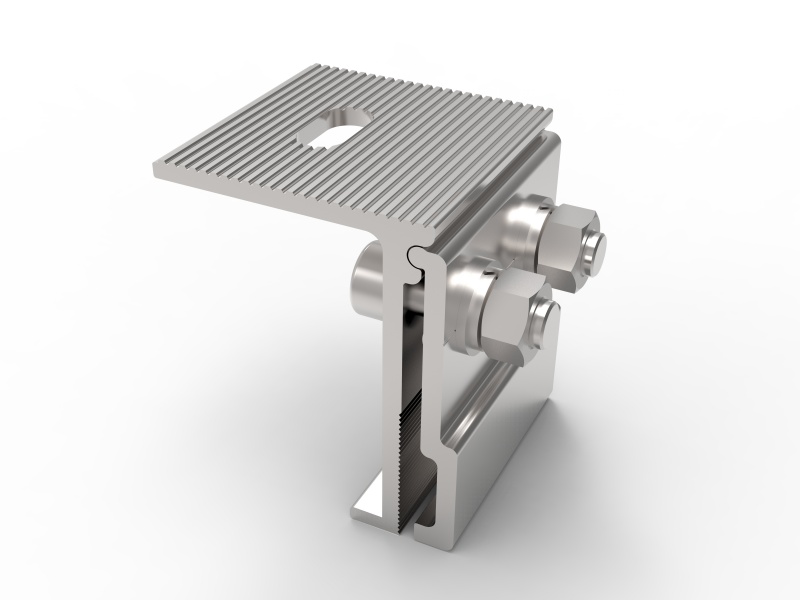

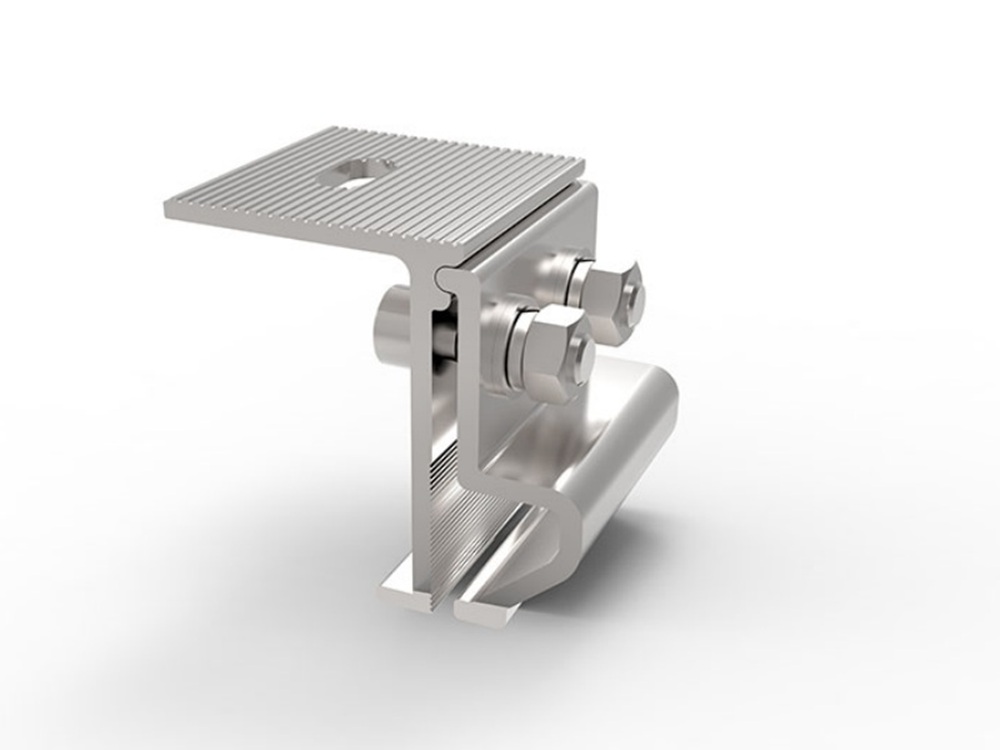

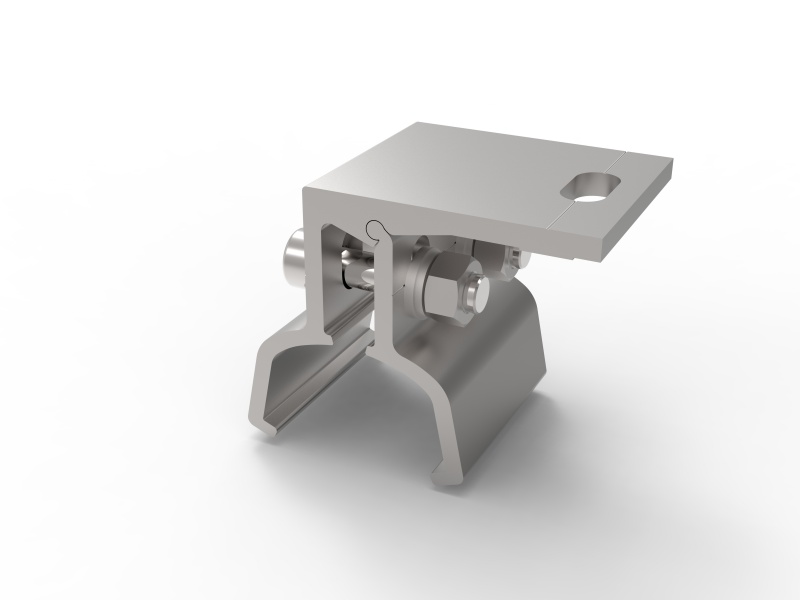

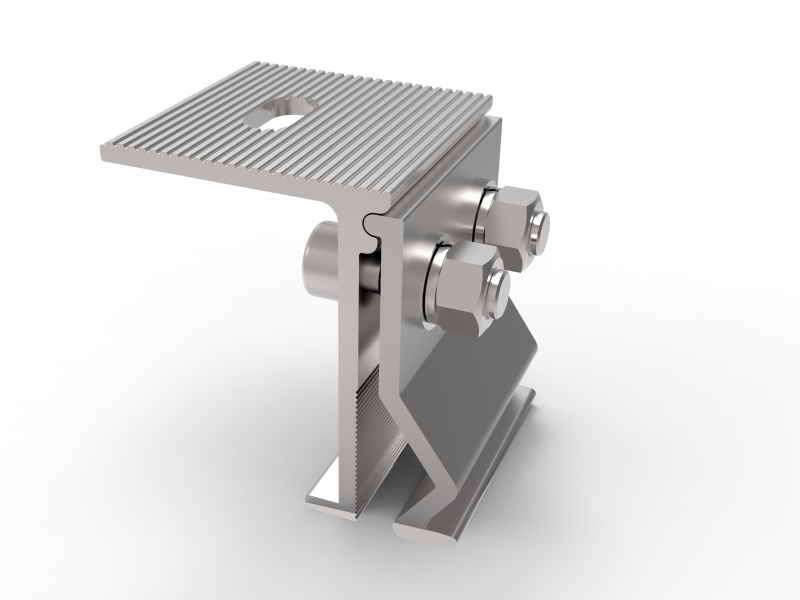

A: Quick release end clamp is a special‑purpose PV mounting accessory used to fasten the outermost edge of solar modules onto mounting rails. Compared with traditional bolt‑type end clamps, it adopts quick‑release locking‑structure, realizes fast module fixing without tedious bolt‑adjustment operation. Widely used for rooftop, ground‑mount and BIPV solar bracket projects.

Q2: Main system components

A: Quick‑release end‑clamp main body, spring locking component, anti‑slip tooth‑structure, positioning‑limiter, SUS304/SUS316 stainless‑steel fastener parts, anti‑corrosion surface‑treatment layer. Matched with standard solar mounting rails and PV module frame.

Q3: Common specifications

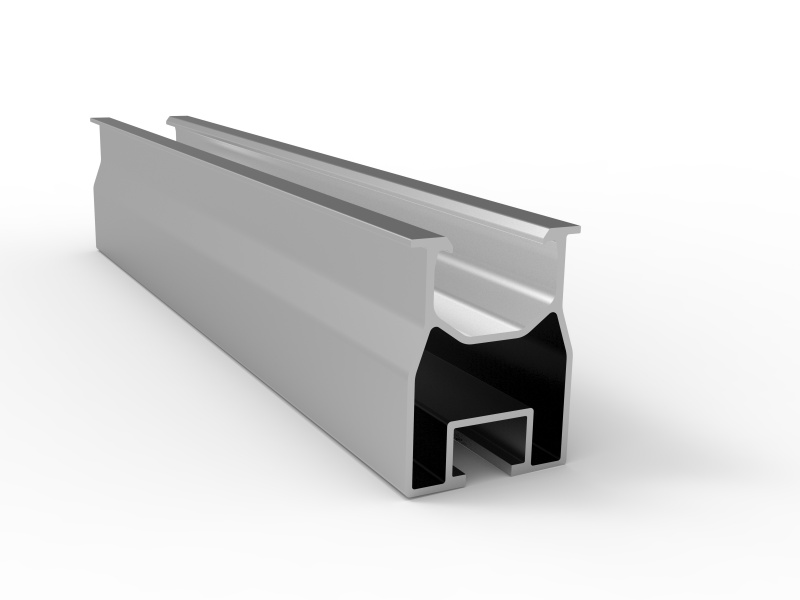

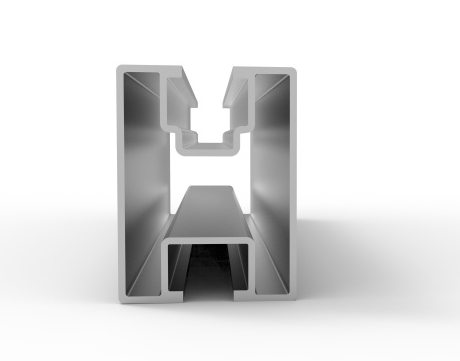

A: Adaptable module frame thickness: 30 mm, 35 mm, 40 mm, 45 mm. Suitable for standard aluminum solar mounting rail profiles. Material: High‑strength aluminum‑alloy ADC6063‑T5; fastener SUS304 / SUS316 for coastal anti‑corrosion. For end‑position fixing of PV panels; cannot replace mid‑clamp for inter‑module connection.

Q4: Core advantages

A: 1. Fast installation: greatly shorten on‑site installation time, reduce bolt‑torque‑repeated‑adjustment work. 2. Anti‑loosening performance: built‑in spring‑locking and anti‑slip‑tooth‑structure, resist vibration caused by wind load. 3. Convenient later‑stage maintenance: quick‑release structure allows fast disassembly for single‑module replacement without removing adjacent panels. 4. Good corrosion resistance: anodized aluminum body plus stainless‑steel accessories, adapt to coastal salt‑spray environment. 5. Reduce human‑operation error on‑site, lower risk of improper bolt‑torque.
