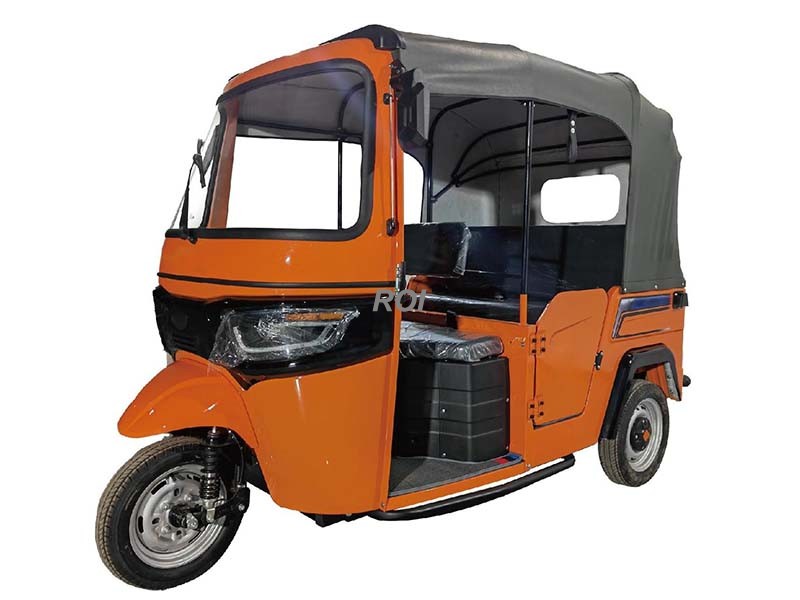

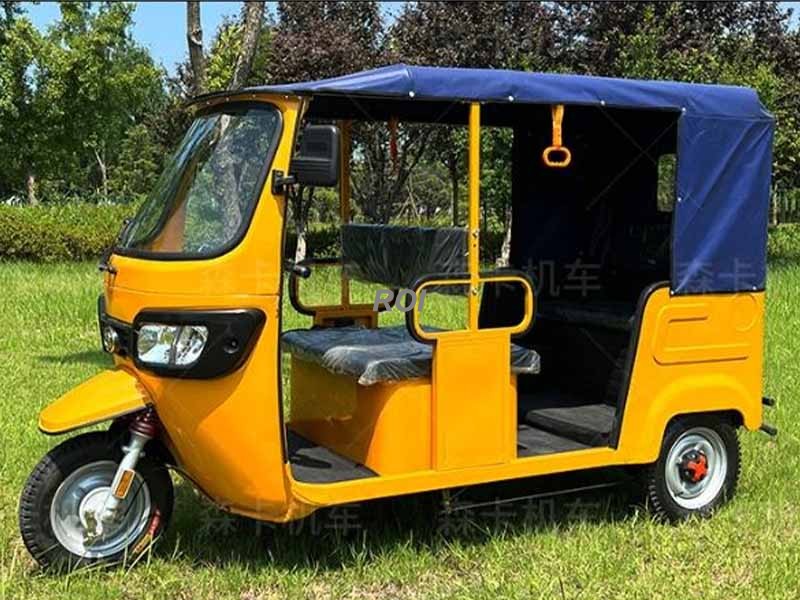

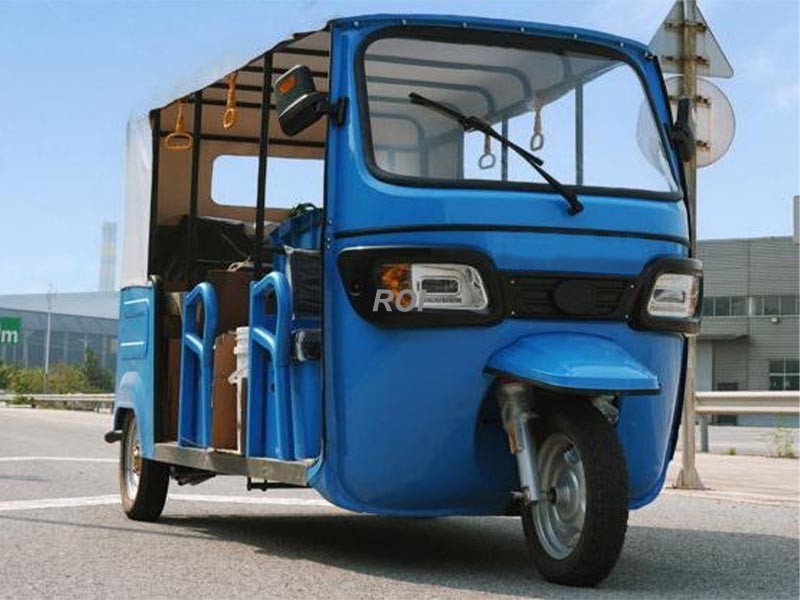

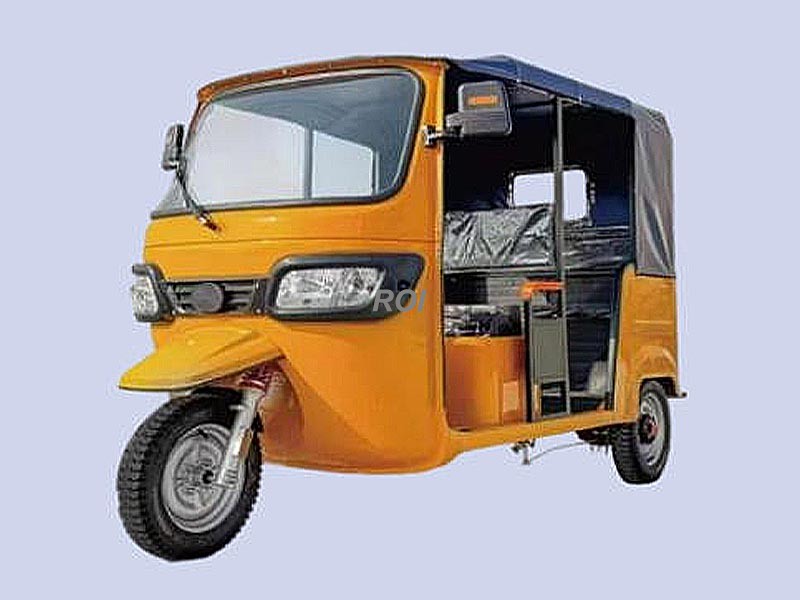

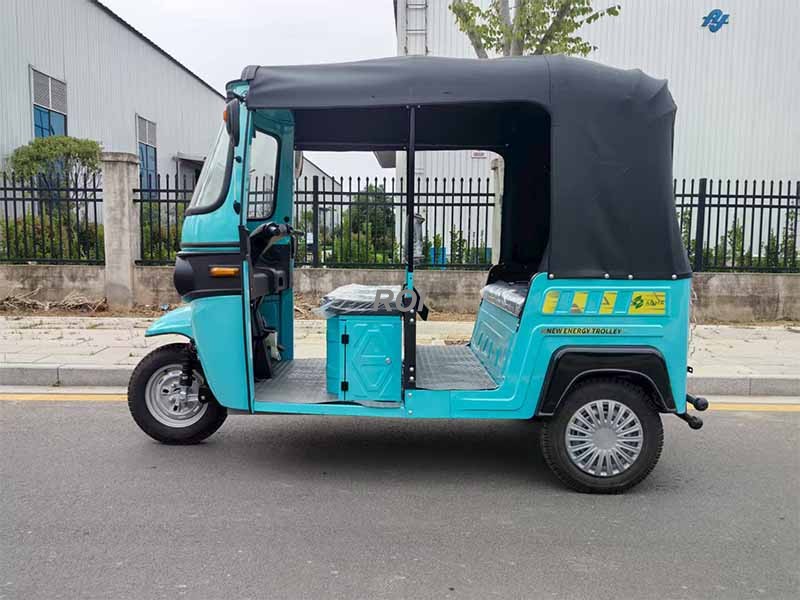

ROI has a rich product line, covering electric tricycles, electric four-wheelers, golf carts, sightseeing vehicles and other types oflow-speed cars.
Each product is carefully designed and rigorously tested to meet thedifferent requirements of consumers. Whether it is urban commuting, ruraltransportation or travel for the elderly, Oliter can provide customers withsuitable and leading system solutions.
Payment :
T/TProduct Origin :
ChinaLead Time :
60 days
The Speed Limit: Maximuim 50km/h to ensure safety in non-highway environments.
Power Source: Commonly electric (battery-powered), with some using small internal combustion engines; electric models are favored for low noise and zero emissions.
Safety Features: Required to have basic safety equipment like headlights, taillights, turn signals, brakes, and seatbelts (varies by region).
The residential communities: For short-distance transportation (e.g., visiting neighbors, grocery runs).
Institutional areas: Campuses, hospitals, or retirement communities for shuttle services.
Commercial zones: Resorts, theme parks, or industrial facilities for staff or guest transport.
From five major aspects, defining and producing good vehicles.
Automobile Manufacturing Process
Designed and built according to new energy vehicle standards.
Strict Ouality Control
Multiple National Patents.
Guarantee the sustainable development of products.
First-class Supply Chain
Key components of the vehicles are all from well-known manufacturers.
Technical Support
In-depth cooperation with domestic automobile design.
| Dimension(L*W*H) | 3300mmx1250mmx1790mm(including bumper) |
| Vehicle weight | 320 kg (Battery not included) |
| Wheelbase | 2270mm |
| Tread | 1000mm |
| Minimum ground clearance | 280mm |
| Loading Capacity | 800kg |
| Passenger Capacity | 7 people |
| Speed | Maximuim 50km/h |
| Motor power | 3000w |
| Lamps | Headlight+Turn Signal+Driving Light+Reversing Light |
| Workbench & instrument | Dedicated |
| Wiper Motor | Pure copper motor |
| Tire size | Front wheel 400-12, Back wheel 400-12 |
| Wheels | slron wheels (galvanizated) |
| Electronic Control System | 36-tube intelligent dual-mode controller |
| Controlling Method | Twist-handle |
| Driving Method | Direction handle |
| Braking Method | Mechanical drum brake |
| Wiring Arrangement of Assembly Wiring Hamess | High and low voltage dual lines: high temperature line high voltage16mm² , low voltage 1.5mm² |
| Front shock absorber | Direct plug hydraulic shock absorber |
| Drive axle | 220 drum brake integrated rear axle |
| Rear Suspension | Support arm spring structure |
| Tarpaulin | Composite oil canvas (off white) |
| Frame material | One-piece curved beam structure, the main beam adopts 40mm*60mm*4mm rectangular tube, the secondary beam adopts 40mm*60mm*3mm rectangular tube and is treated with cathodic electrophoresis for corrosion and rust prevention. |
| Carriage structure | The front and rear panels are integrally stamped and detachable,making assembly simple and convenient |

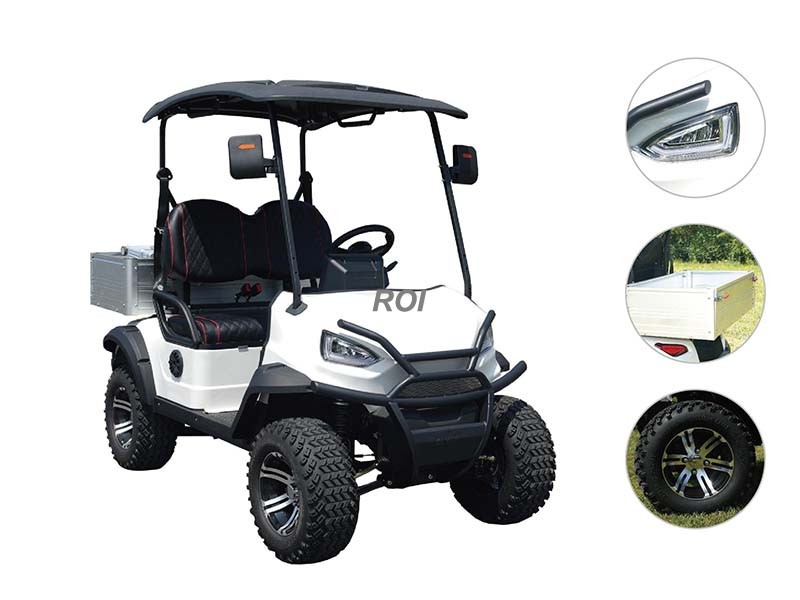

Golf Cart - 2 People Seating capacity
| Motor | 48V/5KW | Net weight | 1069.5lb |
| Battery | 48V150 AH lithium iron phosphate | Seating capacity | 2 people |
| Charger | Vehicle mounted intelligent | Forward speed | 21.74 km/h |
| Tire Size | 10 inch | Braking dist | ≤196 inch |
| Dimension | 107*47.2*78.7 inch | Turning radius | ≤146.7 inch |
| Ground clearance | 4.3 inch | Climbing ability | 20% |
| Tread distance | front: 66.9 inch rear; 39.3 inch | Maximum mileage |
49.7 mi |

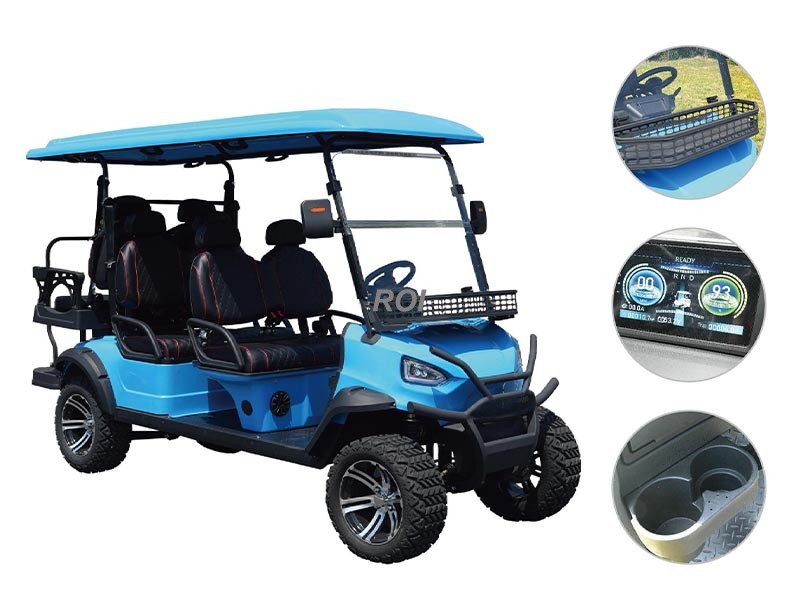

Golf Cart - 4 People Seating capacity
| Motor | 48V/5KW | Net weight | 1114lb |
| Battery | 48V150 AH ithium iron phosphate | Seating capacity | 4 people |
| Charger | Vehicle moumned intelligent | Forward speed | 24.85 km/h |
| Tire Size | 14 inch | Braking dist | ≤196 inch |
| Dimension | 119*52*82.6 inch | Turning radius | ≤146.7 inch |
| Ground clearance | 4.3 inch | Climbing ability | 30% |
| Tread distance | front: 66.9 inch rear; 39.3 inch | Maximum mileage | 68 mi |

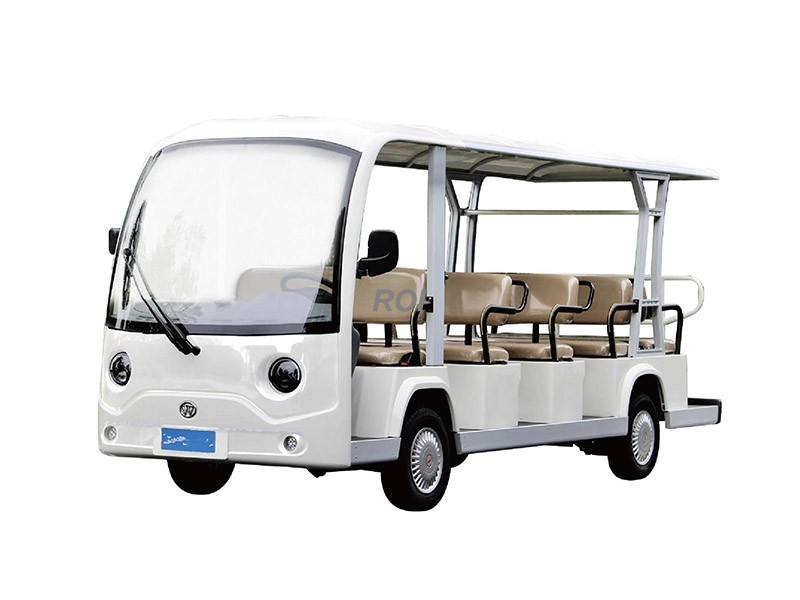

Sightseeing Vehicles - 14 People Seating capacity
| Motor | 72V/6.3KW | Net weight | 2620 Pourd |
| Battery | 200AH | Seating capacity | 14 people |
| Charger | Vehicle mounted intelligent charger | Forward speed | 17mi/h |
| Tire Size | 12/14 inch | Braking dist | ≤236 inch |
| Dimension | 207*56*76 inch | Turning radius | 200 inch |
| Ground clearance | 5.9/6.5 inch | Climbing ability | 20% |
| Tread distance | front: 35.4 inch rear; 39.4 inch | Maximum mileage | 50 mi |
Sightseeing Vehicles - 14 People Seating capacity
| Motor | 48V/3KW 60V/4KW | Net weight | 1650 Pourd | |
| Battery | 150AH | Seating capacity | 8 people | |
| Charger | Vehicle mounted intelligent charger | Forward speed | 17mi/h | |
| Tire Size | 10 inch | Braking dist | ≤236 inch | |
| Dimension | 151*48*74 inch | Turning radius | 200 inch | |
| Ground clearance | 4.3 inch | Climbing ability | 20% | |
| Tread distance | front: 35.4 inch rear; 39.4 inch | Maximum mileage | 38-50 mi | |

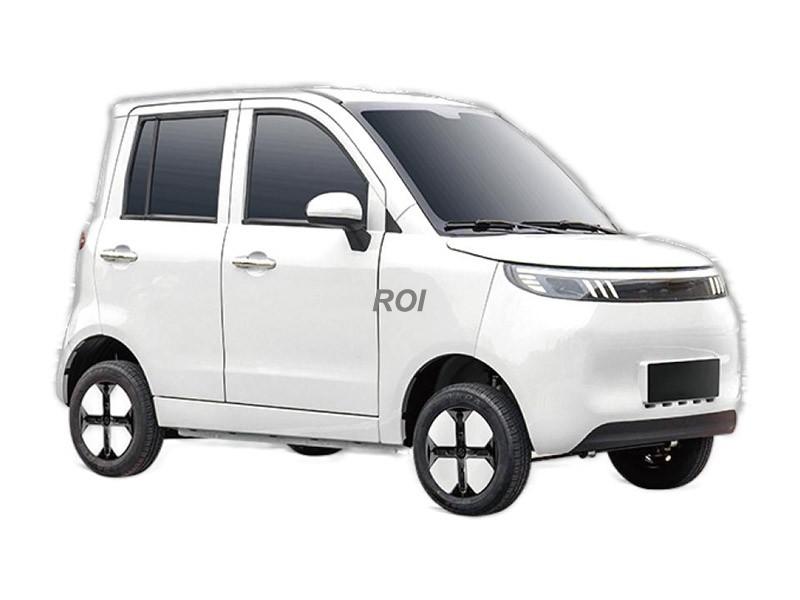

Low Speed Car
| Item | Specification | |
| Dimension | 2900*1450*1600mm | |
| Motor Power |
3kw | |
| Suspension | Front McPherson independent suspension/Rear trailing arm non-independent suspension |
|
| Core Configurati on |
Five doors and four seats, one-button start, remote control key, dual power assist, leather seats, rear- mounted rear-wheel drive, 10-inch floating large screen, 7-inch instrument, reversing image, daytime running lights, four electric doors, electronic knob gear, hill start assist/anti-slip function |
|
