ROI L feet fit all roof types, anti-corrosion and easy to install, supporting bulk wholesale and customized service.It's stable, efficient, and reliable.
Order(MOQ) :
50Payment :
T/TProduct Origin :
chinaColor :
whiteLead Time :
10~15
Specifications of the products
| Installtation site | Pitched roof | Main material | AL6005-T5 & SUS304 |
| Tilt angle | Flushed to roof | Treatment | Anodizing |
| Building height | Below 20m | Color | Natural |
| Max wind load | Up to 42m/s | Service life | More than 25 years |
| Max snow load | Up to 0.5kN/m2 | Warranty | 12 years |
Factory production photos
|

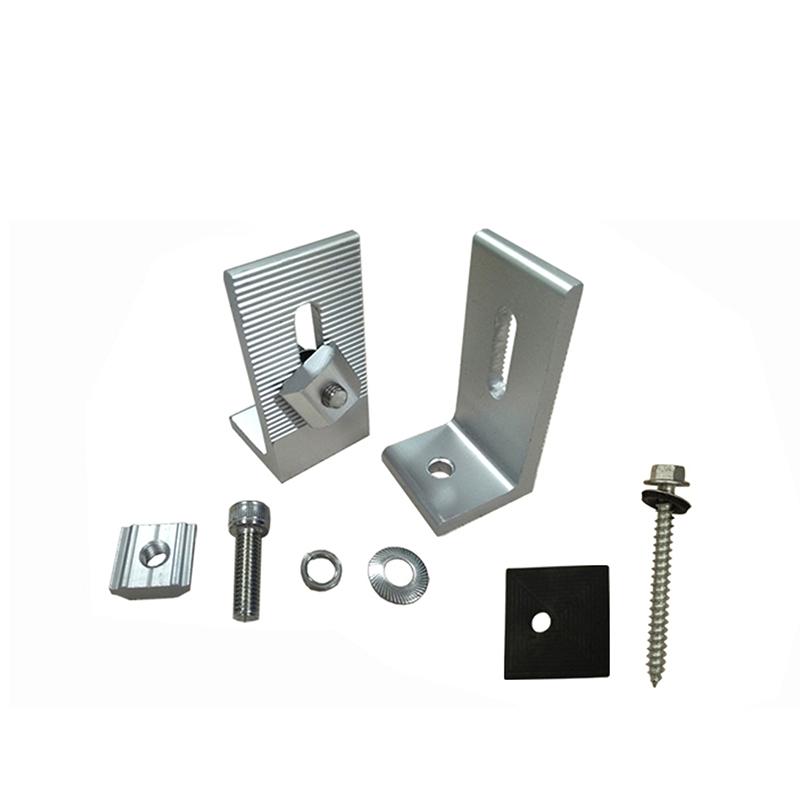

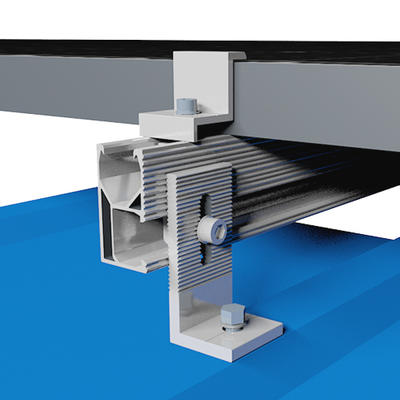

• Designed for flat or low-profile metal roof applications, this L-shaped mounting bracket uses a flat base with direct bolt-down fastening. • Its extruded aluminum body provides robust support for solar panel rails, with slotted holes allowing flexible alignment adjustments. • The simple yet durable structure enables quick installation, delivering reliable performance for residential and commercial solar systems on pitched metal rooftops.
|

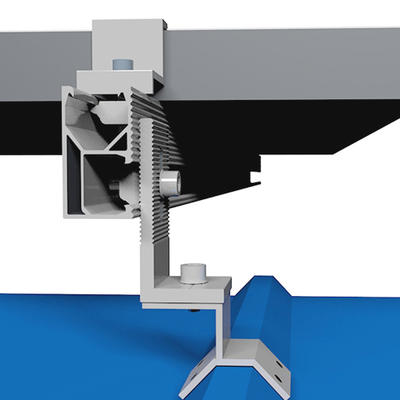

• This specialized L-foot bracket is engineered for trapezoidal/corrugated metal roofs, securely clipping onto roof panels without full penetration. • Made of corrosion-resistant aluminum alloy, it features a finned design for enhanced structural rigidity and heat dissipation. • The angled base locks firmly to the roof profile, supporting solar rails while ensuring long-term waterproofing and load stability for rooftop PV installations.
|
|

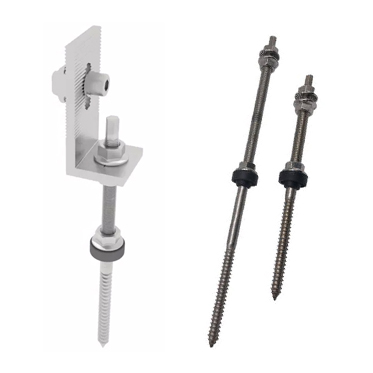

L foot with Hanger Bolt
• Suitable for metal roof with wooden rafter. Different lengths are available. And for metal rafter, we also have anchor bolt M10x200mm for instead. |

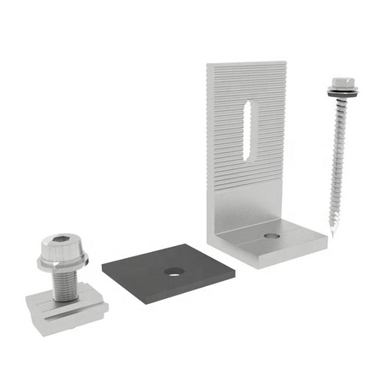

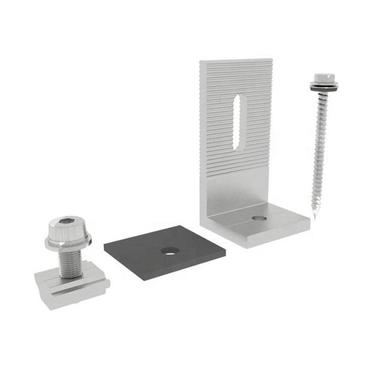

L foot with Tapping Screw
• Widely used in both commercial and industrial solar projects. It's suitable for trapezoidal metal roof and corrugated metal roof.
|
A: L‑feet is a critical roof‑mount base fitting for solar mounting systems. It forms an L‑shaped support, connects roof brackets / roof hooks with solar mounting rails, transfers PV system loads to the roof structure. Widely used for metal roof and tiled roof PV installations.
A: Main body: 6005‑T5 / 6063‑T5 anodized aluminum alloy. Matching bolts, washers: SUS304 stainless steel. Excellent anti‑corrosion and UV‑resistance, fit coastal and humid outdoor environments.
A: Suitable for trapezoidal metal roof, corrugated metal roof, tile roof, standing‑seam roof with matched accessories. Confirm roof substrate strength before installation.
A: Some L‑feet models offer height adjustment. It can create clearance between rail and roof surface for ventilation, avoid water accumulation and reduce heat impact on roof.

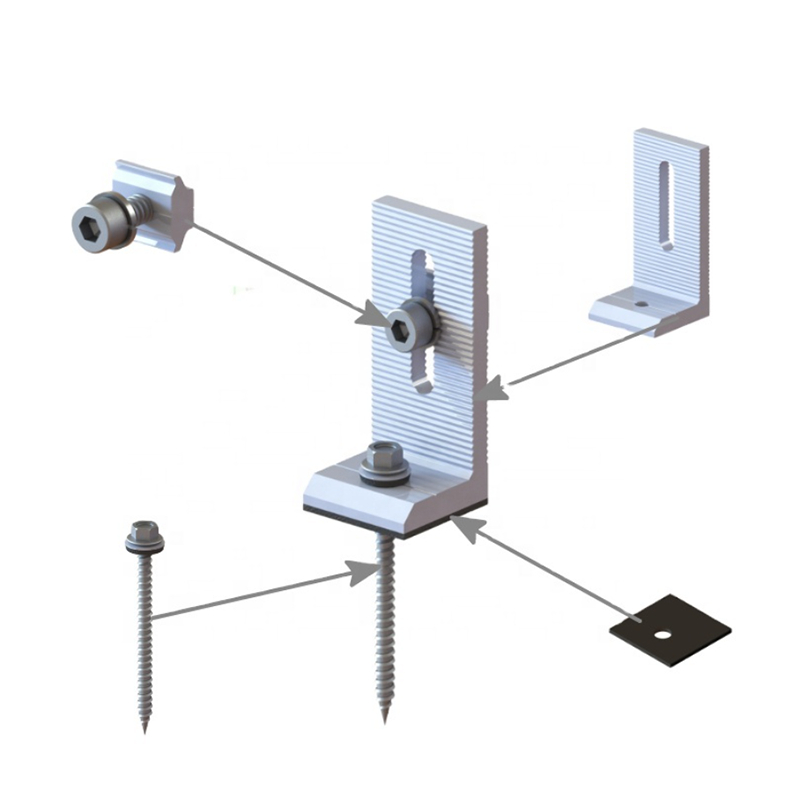

A: Fasten L‑feet onto roof hooks / roof base brackets first, then fix solar mounting rails on top of L‑feet with T‑bolts and spring nuts. Follow installation manual for recommended bolt torque.
