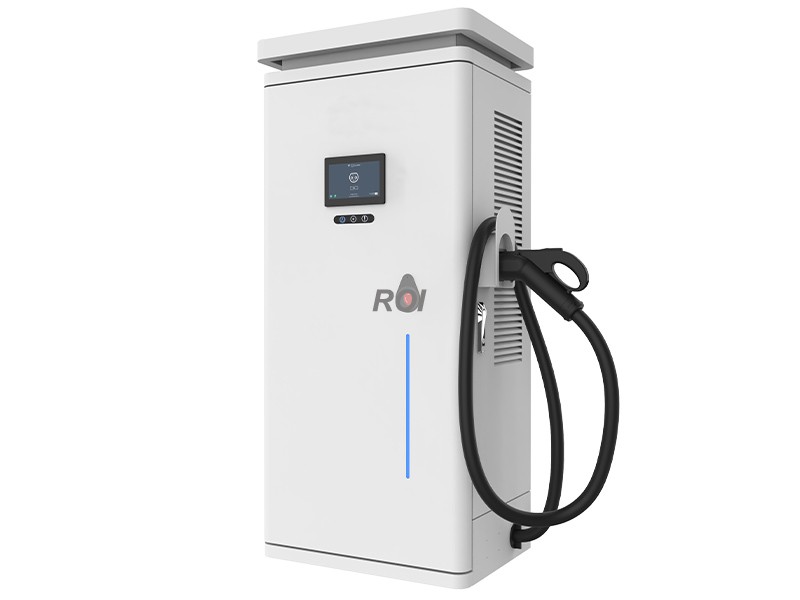

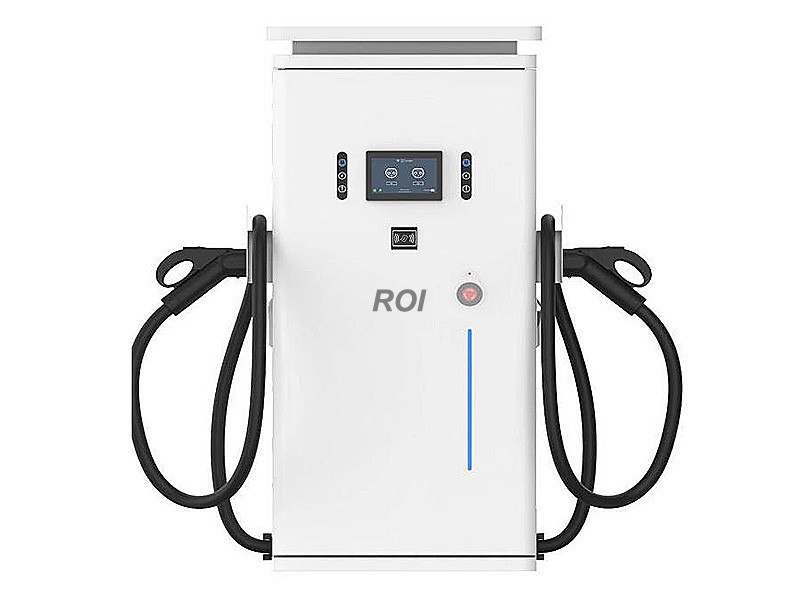

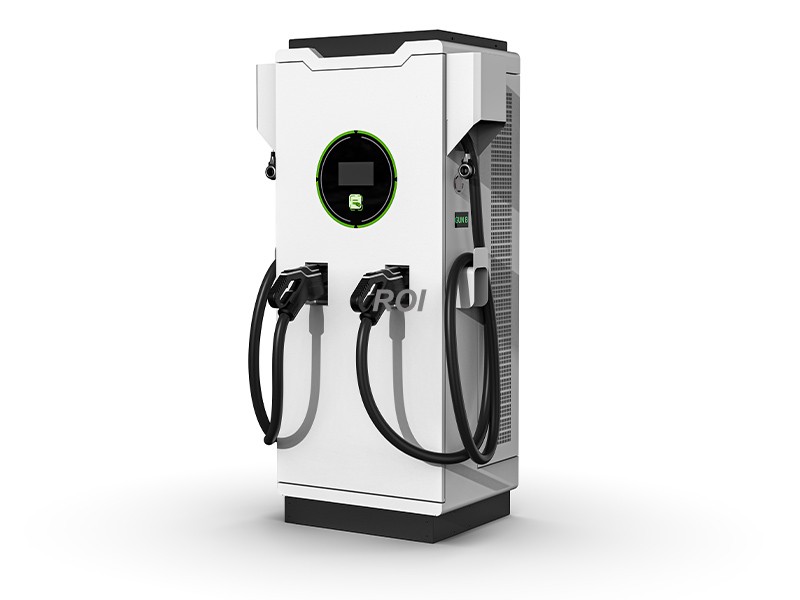

ROI DC CHARGING STATION, is also known as a fast charging station, advanced Safety Features – Equipped with comprehensive safety mechanisms such as over-current, over-voltage and temperature protection ensuring safe and reliable operation in all conditions. And the Scalable and Future-proof – The modular design allows for easy upgrades and scalability enabling operators to adapt to increasing power demands and future EV technologies.
Payment :
T/TProduct Origin :
ChinaLead Time :
30 days
The Structural Components of ROI DC CHARGING STATION:
It mainly consists of core components and auxiliary systems:
- Power Module: The core part responsible for AC-to-DC conversion.
- Control System: Manages the entire charging process and parameter regulation.
- Display & Operation Interface: Provides a platform for users to initiate, monitor, and terminate charging.
- Communication Module: Enables data exchange between the charging station, EV, and backend management system.
- Safety Protection Device: Includes overvoltage, overcurrent, overtemperature, and insulation protection to safeguard the charging process.
1. Ultra-fast Charging – With power outputs ranging from 60kW to 240kW，
our DC charging station significantly reduces charging time，
providing up to 80% charge in just 20-30 minutes for most EVs.
2. Wide Compatibility – Supports global charging standards，
including CCS CHAdeMO and GB/T，
ensuring seamless compatibility with a wide range of electric vehicles.
| Model | CXE-D60K | CXE-D120K | CXE-D160K CXE-D180KCXE-D240K | |||
| Output Power | 60kW | 120kW | 160kW | 180kW | 240kW | |
| Current Range | 1-200A | 1-250A | ||||
| Input Voltage | AC400V±20% | |||||
| Frequency | 50/60Hz | |||||
| Output Voltage | 200-1000VDC | |||||
| Constant Power Range | 300-1000VDC | |||||
| Charging Gun | 5m charging gun(length customized available) | |||||
| Communication Method | 4G/LAN/WIFI | |||||
| Stable Voltage Accuracy | ≤0.5% | |||||
| Stable Current Accuracy | ≤1% | |||||
| Human Machine Interface | 7-inch color touchscreen | |||||
| Efficiency | ≥97% | |||||
| Power Factor | ≥0.99 | |||||
| Current Sharing Coefficient | ≤5% | |||||
| Harmonic Current | ≤5% | |||||
| Noise | S65db | |||||
| Metering Accuracy | Level1 | |||||
| IPGrade | IP55 | |||||
| Standby Power | ≤N*50W | |||||
| Cooling | Fan cooling | |||||
| Electrostatic Discharge lmmunity | Class 4 | |||||
| Surge Immunity | Class 4 | |||||
| Working Temperature | -30℃~50℃ | |||||
| Working Humidity | 5%~95%no condensation | |||||
| Altitude | ≤2000m | |||||
| Product Dimension WxDxH | 950mm*570mm*1800mm | |||||
