ROI Electric Vehicle DC Fast Charging Station, is also known as a fast charging station, advanced Safety Features – Equipped with comprehensive safety mechanisms such as over-current, over-voltage and temperature protection ensuring safe and reliable operation in all conditions. And the Scalable and Future-proof – The modular design allows for easy upgrades and scalability enabling operators to adapt to increasing power demands and future EV technologies.
Payment :
T/TProduct Origin :
ChinaLead Time :
30 days
The Structural Components of ROI Electric Vehicle DC Fast Charging Station:
It mainly consists of core components and auxiliary systems:
-Power Module: The core part responsible for AC-to-DC conversion.
- Control System: Manages the entire charging process and parameter regulation.
- Display & Operation Interface: Provides a platform for users to initiate, monitor, and terminate charging.
- Communication Module: Enables data exchange between the charging station, EV, and backend management system.
- Safety Protection Device: Includes overvoltage, overcurrent, overtemperature, and insulation protection to safeguard the charging process.
1. Ultra-fast Charging – With power outputs ranging from 60kW to 240kW, our DC charging station significantly reduces charging time, providing up to 80% charge in just 20-30 minutes for most EVs.
2. Wide Compatibility – Supports global charging standards, including CCS CHAdeMO and GB/T, ensuring seamless compatibility with a wide range of electric vehicles.
| Model | CXE-D60K | CXE-D120K | CXE-D160K CXE-D180KCXE-D240K | |||
| Output Power | 60kW | 120kW | 160kW | 180kW | 240kW | |
| Current Range | 1-200A | 1-250A | ||||
| Input Voltage | AC400V±20% | |||||
| Frequency | 50/60Hz | |||||
| Output Voltage | 200-1000VDC | |||||
| Constant Power Range | 300-1000VDC | |||||
| Charging Gun | 5m charging gun(length customized available) | |||||
| Communication Method | 4G/LAN/WIFI | |||||
| Stable Voltage Accuracy | ≤0.5% | |||||
| Stable Current Accuracy | ≤1% | |||||
| Human Machine Interface | 7-inch color touchscreen | |||||
| Efficiency | ≥97% | |||||
| Power Factor | ≥0.99 | |||||
| Current Sharing Coefficient | ≤5% | |||||
| Harmonic Current | ≤5% | |||||
| Noise | S65db | |||||
| Metering Accuracy | Level1 | |||||
| IPGrade | IP55 | |||||
| Standby Power | ≤N*50W | |||||
| Cooling | Fan cooling | |||||
| Electrostatic Discharge lmmunity | Class 4 | |||||
| Surge Immunity | Class 4 | |||||
| Working Temperature | -30℃~50℃ | |||||
| Working Humidity | 5%~95%no condensation | |||||
| Altitude | ≤2000m | |||||
| Product Dimension WxDxH | 950mm*570mm*1800mm | |||||

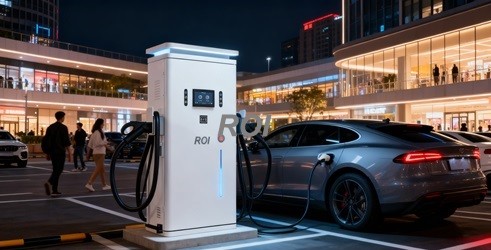

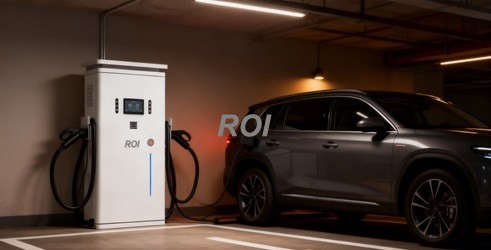

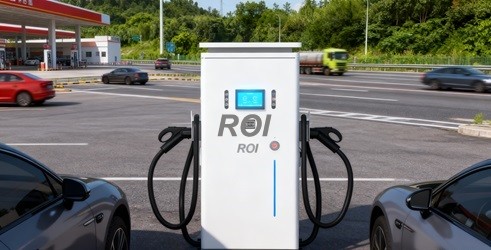

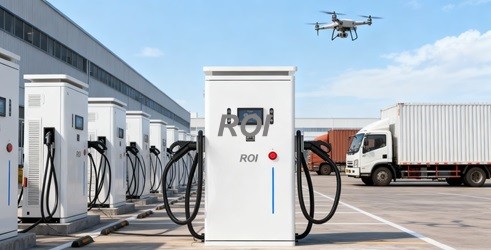

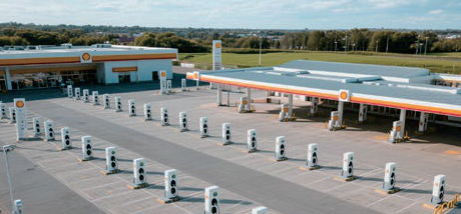

The electric vehicle DC fast charging station is widely used for rapid charging of electric cars, buses, logistics vehicles, and fleet vehicles. It is suitable for installation in various locations such as public charging stations, highway service areas, commercial parking lots, residential communities, industrial parks, and transportation hubs.
Learn the steps to installing a DC fast charger for EVs, from site selection, unpacking, placing, to wiring and more from Rol Technology.
