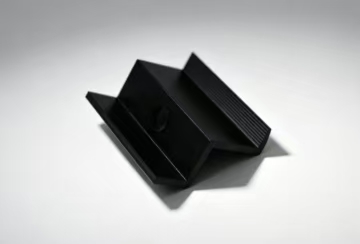

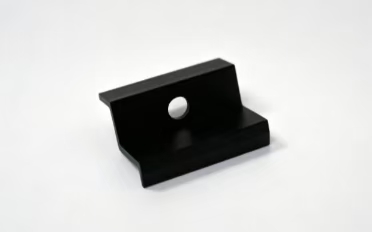

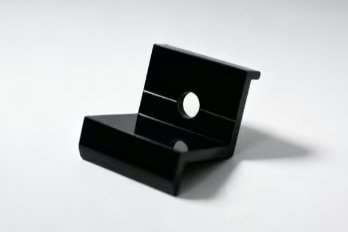

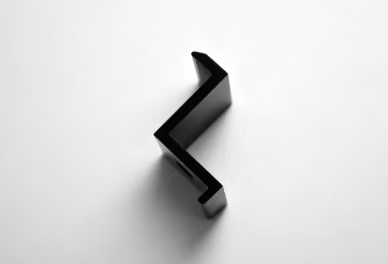

Solar Black Rapid End Clamp

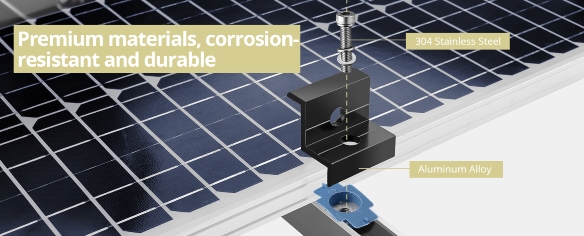

Premium Material, Durable & Long Lasting

ROI solar panel mounting bracket are made of aluminum alloy, which with light weight, large load capacity and strong corrosion resistance, suitable for a variety of outdoor environments. And the mounting screws are made of 304 stainless steel, which has the advantages of rust resistance

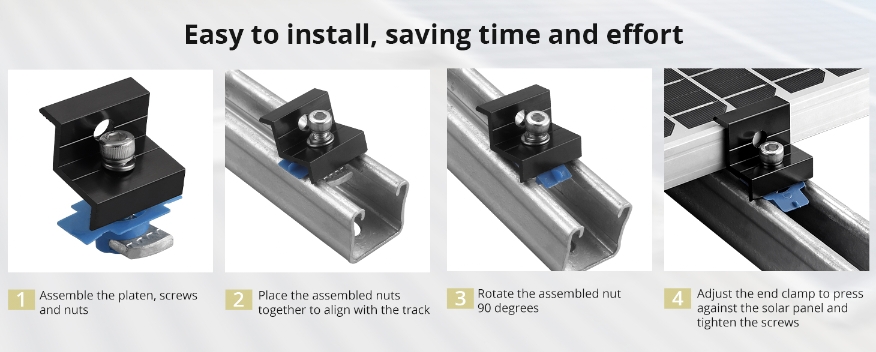

Easy Installation

ROI solar panel clamp have pre-drilled mounting holes on the surface and including groove nuts and screw. The connection between each solar module panel can be easily realized. Easy to install, save time and labor cost

Complete End Clamp Kit for Standard Unistrut

10 pcs 30 mm(1.18")/35 mm(1.38") solar panel mounting kit, including complete accessories for installation. Set of 10, the quantity is enough to meet your daily use and replacement needs

Wide Applications

Suitable for most home, RV and marine solar panel installations, you can install solar panels on flat and pitched roofs made of tiles, asphalt shingles, ceramic tiles, slab shingles and standing seam boards. Provides toughness to withstand extreme weather conditions

Installation Site:	All Roof	Surface Treatment:	AA10 / AA15 / AA20
Place of Origin	Xiamen,China	Color:	Anodized Silve r/ Electrolytic Black
Material:	Aluminium 6005 T5	Standard:	JIS C 8955: 2017; AS/NZS ,1170; DIN1055; ASCE/SEI 7 -05; EN 1991-1-4:2005; International Building Code: IBC 2009
Surface Treatment:	Anodized	Warranty:	10 years warranty



Solar Black Rapid End Clamp FAQ

Q1: What is the product warranty?

A: 10‑year product warranty, expected service life up to 25 years under normal outdoor conditions.

Q2: Can I get samples before bulk order?

A: Yes, samples are available. Customer covers freight cost.

Q3: Is customization supported?

A: Yes, we support custom size, laser‑engraved logo and complete bolt‑nut assembly kits.

Q4: What is the difference between adjustable mid‑clamp and fixed mid‑clamp?

A: Adjustable type adapts multiple frame thicknesses for mixed‑spec projects; fixed mid‑clamp only fits one specific frame size with lower unit cost.
