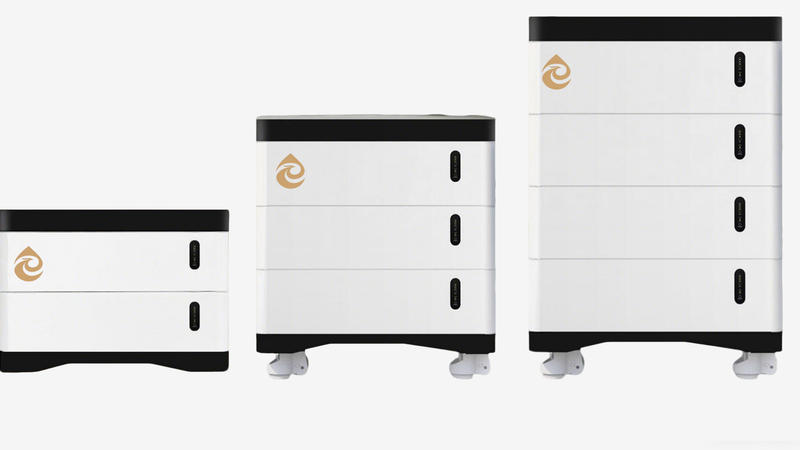

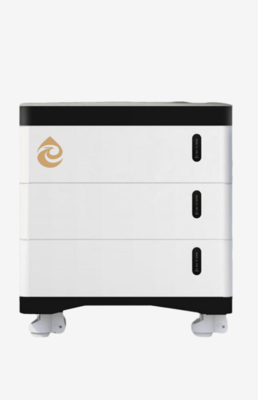

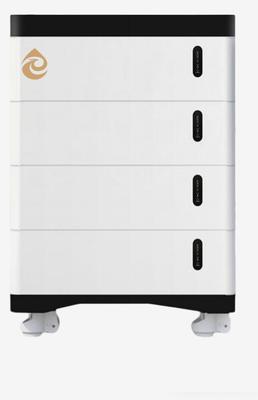

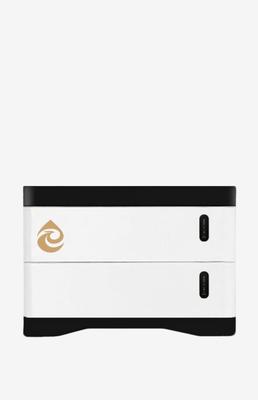

ROI Low-voltage stacked energy storage battery has 5kWh,10kWh,15kWh models (51.2V 100/200/300Ah). Stackable modular design supports flexible capacity expansion, compatible with 20+ mainstream inverters. Self-developed BMS ensures full cell protection, certified to IEC 62619. RS485/CAN communication with optional Bluetooth, suitable for home solar storage, commercial peak shaving and backup power.
Order(MOQ) :
50Payment :
T/TProduct Origin :
chinaColor :
Black and WhiteLead Time :
fifteenWeight :
42kg 75kg 112kgLow-voltage stacked energy storage battery (51.2V/100Ah 51.2V/200Ah 51.2V/300Ah)
Specifications of the products
 |
 |
 |
|
| Product Name: | Low-voltage stacked energy storage battery (51.2V/100Ah ) | Low-voltage stacked energy storage battery ( 51.2V/200Ah ) | Low-voltage stacked energy storage battery ( 51.2V/300Ah) |
| Product Model: | 5 kwh |
10 kwh |
15 kwh |
| Rated voltage： |
51.2V |
51.2V |
51.2V |
| Rated capacity |
100AH |
200AH |
300AH |
| Charge termination voltage： |
58.0V |
58.0V |
58.0V |
| Discharge cutoff voltage: |
42.0V |
42.0V |
42.0V |
| Communication method |
RS485/CAN(bluetooth optional） |
RS485/CAN(bluetooth optional） |
RS485/CAN(bluetooth optional） |
| Size (mm) |
580*360*150mm |
590*500*245mm |
670*550*265mm |
| Weight (kg) |
42kg |
75kg |
112kg |

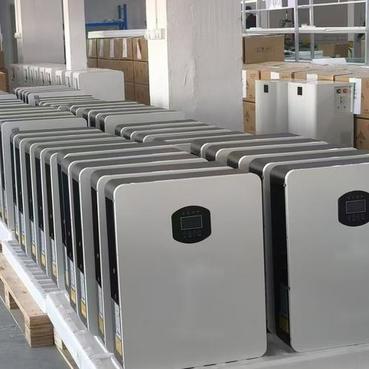

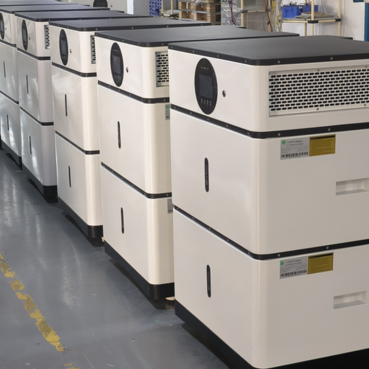

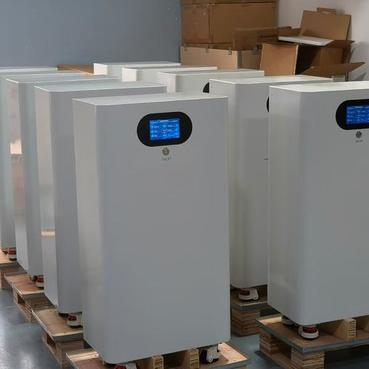

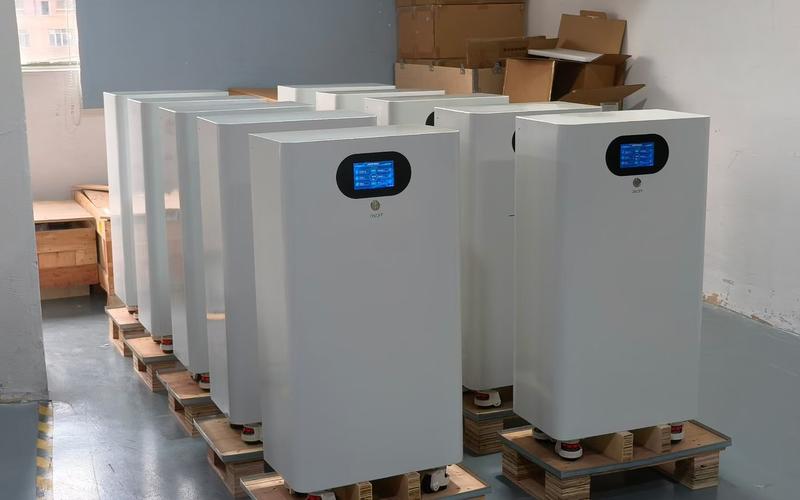

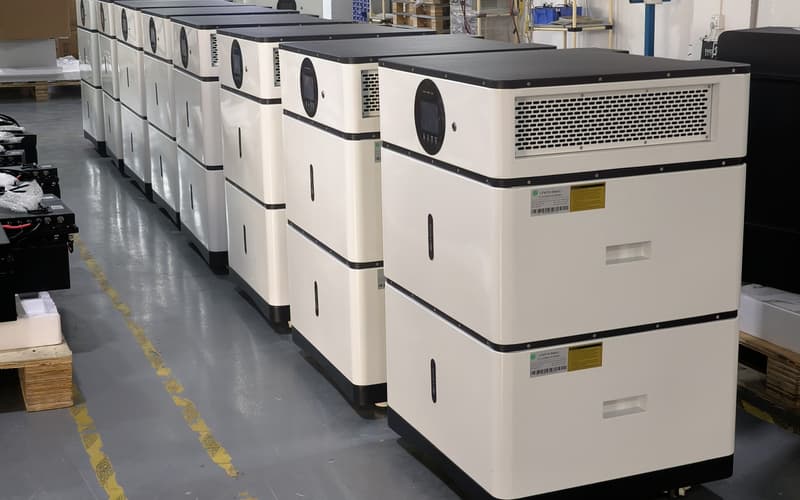

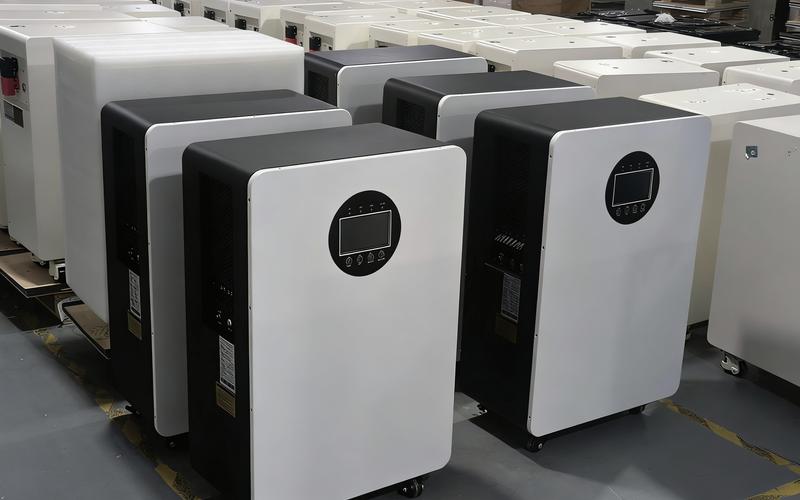

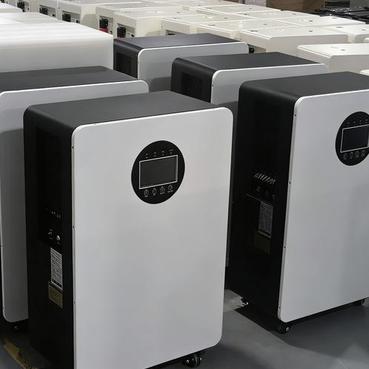

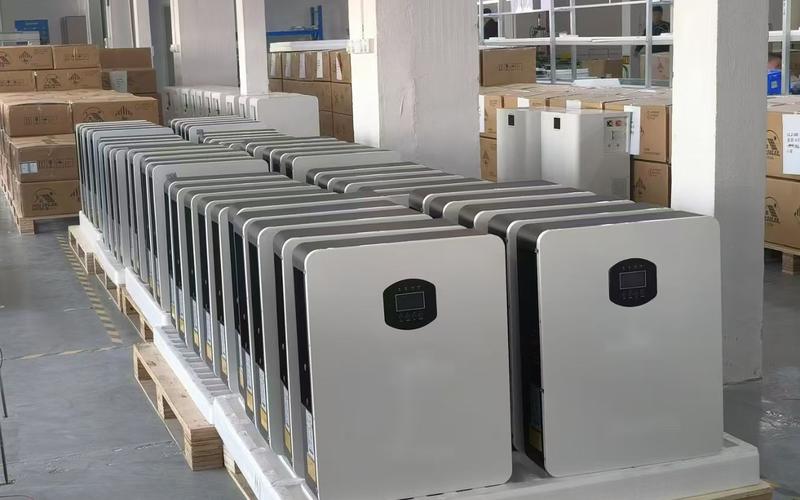

Factory production photos
 |
 |
 |
 |
A: Low‑voltage stacked energy‑storage battery is modular stackable LFP battery system for residential & small‑commercial hybrid solar‑storage projects. Multiple battery modules are stacked vertically to expand capacity. It works with low‑voltage hybrid inverter, features simple installation, flexible capacity expansion and high safety, widely used for household solar‑storage backup, small‑shop peak‑shaving and off‑grid power‑supply scenarios.
A: LFP stacked battery modules, BMS battery management unit, stack‑connecting harness, base support frame, communication cable, protective cover, high‑voltage protection accessories. Matched low‑voltage hybrid inverter is purchased separately.
A: System nominal voltage: 48V / 51.2V low‑voltage DC. Single‑module typical capacity: 5kWh, 7.5kWh, 10kWh. Support stacking 2‑10 modules in one stack, total capacity 10kWh‑100kWh. Expand capacity by adding extra modules without replacing existing batteries.
A: 1. Stack‑modular design, easy transportation and on‑site assembly, no heavy container equipment. 2. Low‑voltage safety characteristic, lower operation risk for residential application. 3. Flexible capacity expansion; users can add modules step‑by‑step according to budget and load growth. 4. Compact footprint, save indoor installation space. 5. Good compatibility with mainstream low‑voltage hybrid solar inverters for home‑storage market.
A: Indoor installation recommended; dry, ventilated, non‑flammable flat ground. Support floor‑standing stacking. Follow stacking quantity limit specified in manual to avoid over‑height risk. Reliable grounding required. Professional electrician completes wiring and communication connection. Not designed for direct outdoor rain exposure.
