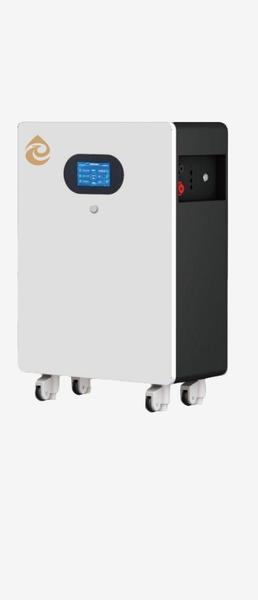

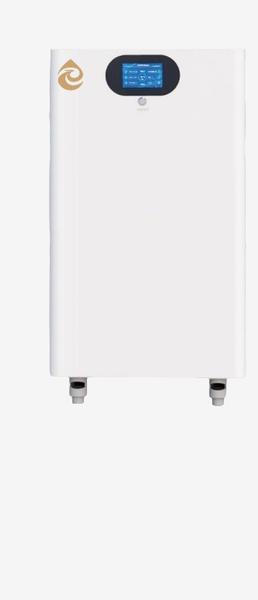

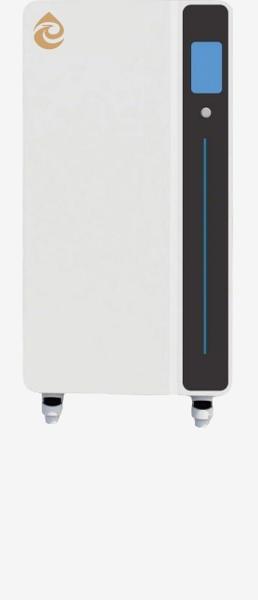

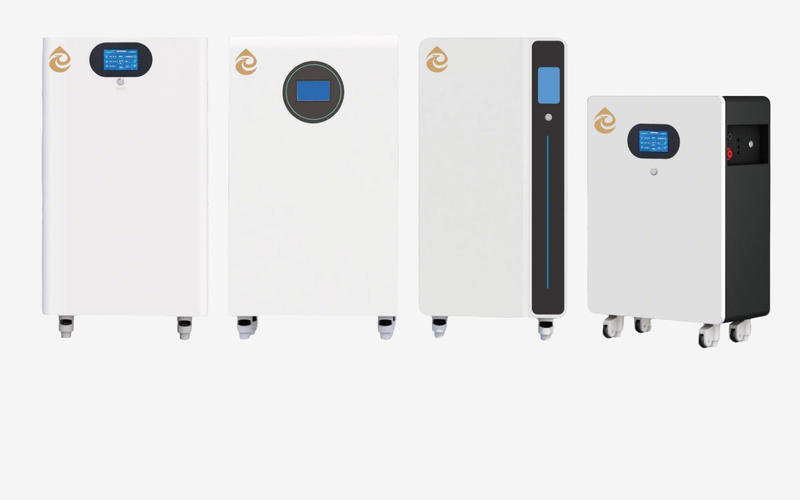

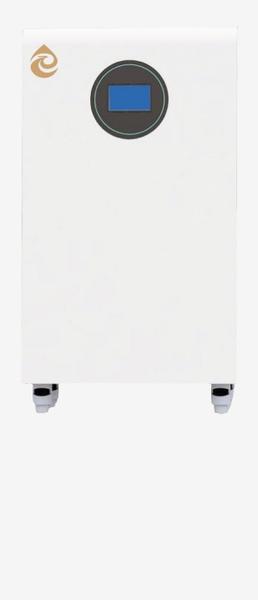

Standing energy storage battery includes 15kWh,16kWh,20kWh models (51.2V 304/314/400Ah). Single unit outputs up to 10kW with long cycle life. Built-in casters for easy moving, customizable RS485/CAN communication with optional Bluetooth. Suitable for household backup, commercial storage and mobile power supply.
Order(MOQ) :
50Payment :
T/TProduct Origin :
chinaColor :
Black and WhiteLead Time :
fifteenWeight :
115kg 113kg 120kg 147kg
Specifications of the products
 |
 |
 |
 |
|
| Product Name: | Standing-type energy storage battery（51.2V/304Ah ） | Standing-type energy storage battery（51.2V/314Ah ） | Standing-type energy storage battery（ 51.2V/314Ah ） | Standing-type energy storage battery（ 51.2V/400Ah） |
| Product Model: | 15kWh/M1 | 16kWh/X1 | 16kWh/Y1 | 20kWh/S1 |
| Rated voltage： | 51.2V | 51.2V | 51.2V | 51.2V |
| Rated capacity： | 304Ah | 314Ah | 314Ah | 400Ah |
| Charge termination voltage： | 58.0V | 58.0V | 58.0V | 58.0V |
| Discharge cutoff voltage: | 42.0V | 42.0V | 42.0V | 42.0V |
| Communication method | RS485/CAN(bluetooth optional） | RS485/CAN(bluetooth optional） | RS485/CAN(bluetooth optional） | RS485/CAN(bluetooth optional） |
| Size (mm) | 470*237*690mm | 433*282*884mm | 495*240*880mm | 510*293*970mm |
| Weight (kg) | 115kg | 113kg | 120kg | 147kg |

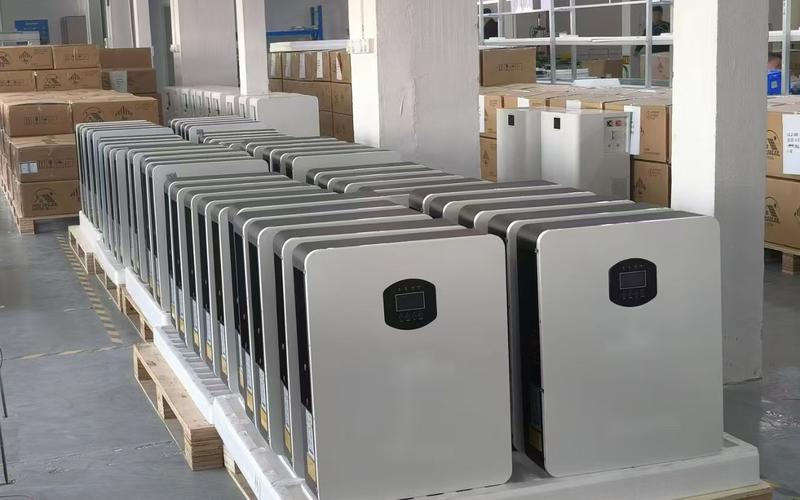

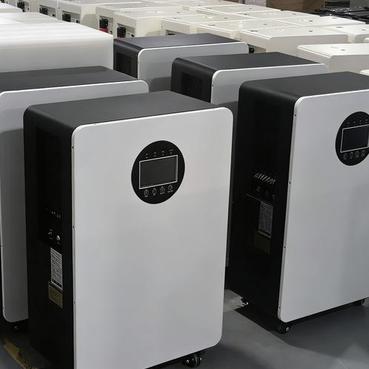

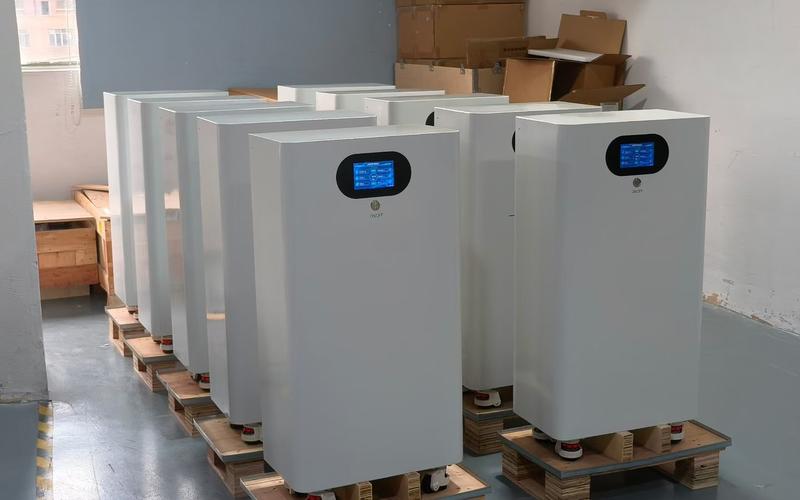

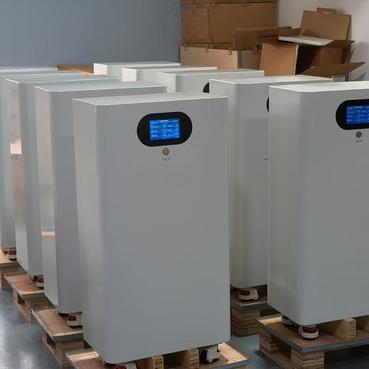

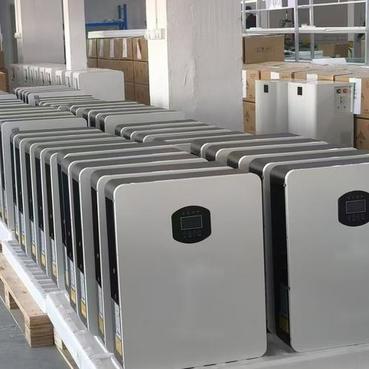

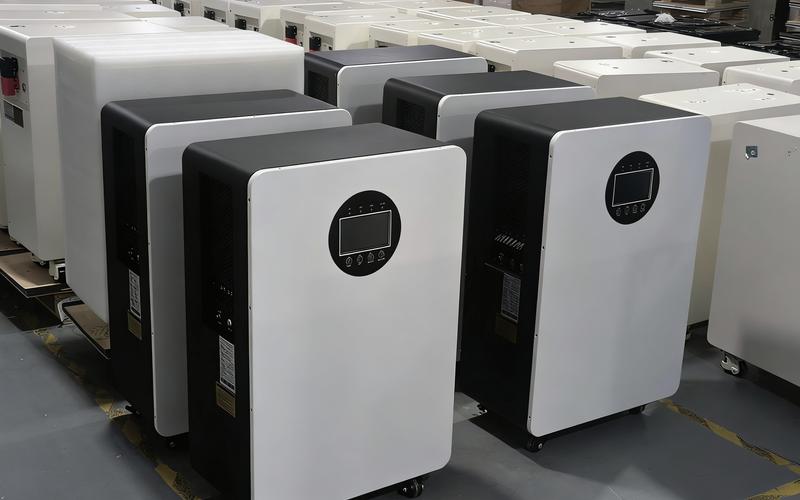

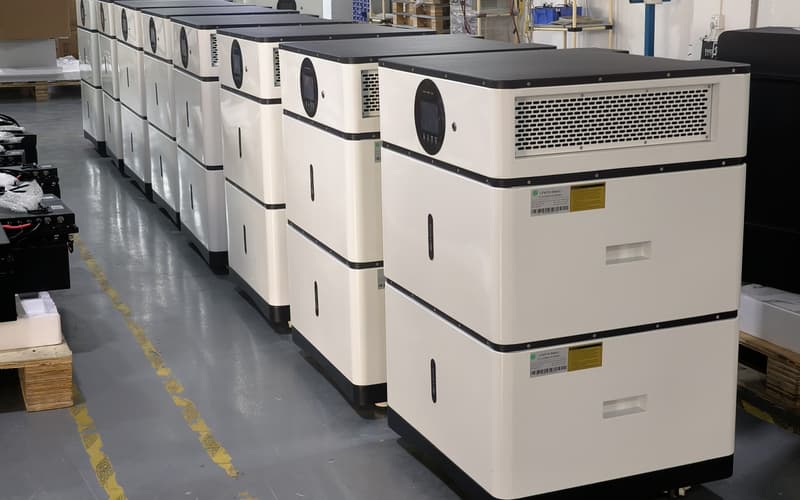

Factory production photos
 |
 |
 |
 |
A: Standing‑type energy storage battery is floor‑standing cabinet‑style energy‑storage unit. It integrates lithium‑iron‑phosphate battery modules, BMS, high‑voltage protection, cooling system and monitoring unit. It is directly placed on ground without additional container housing. Widely used for commercial‑industrial energy‑storage, solar‑storage hybrid system, backup power and small‑scale micro‑grid projects.
A: LFP lithium‑ion battery modules, Battery Management System (BMS), high‑voltage protection cabinet, air‑cooled thermal management unit, HMI touch screen, circuit breakers, fire‑detection accessories, floor‑standing cabinet frame. PCS can be integrated inside or deployed as separate unit.
A: Single‑cabinet typical capacity: 50kWh, 100kWh, 150kWh, 200kWh. Support multiple cabinets parallel connection to expand total capacity. Match with corresponding PCS power according to project demand. Custom‑capacity cabinet is available upon request.
A: Commercial & industrial peak‑shaving & load‑shifting, rooftop PV‑storage system, factory emergency backup power, small‑scale off‑grid micro‑grid, solar‑charging‑storage integrated projects, indoor‑sheltered commercial energy‑storage sites.
A: Floor‑standing design requires flat and solid ground bearing capacity. Can be installed indoors or sheltered outdoor environment. Avoid direct long‑term rain exposure for non‑outdoor‑grade model. Need professional high‑voltage wiring and reliable grounding. Comply with local electrical safety codes.
A: Operating temperature:‑10℃ ~ +45℃. Protection grade IP20 for indoor cabinet; optional IP54 version for sheltered outdoor application. Adopt air‑cooling heat dissipation to keep battery working temperature stable.
A: Over‑charge / over‑discharge, over‑current, short‑circuit, over‑voltage / under‑voltage, over‑temperature & low‑temperature protection, insulation monitoring, smoke‑temperature fire detection, emergency‑stop button. BMS realizes cell‑level monitoring and balance management. External automatic fire‑extinguishing device optional.
