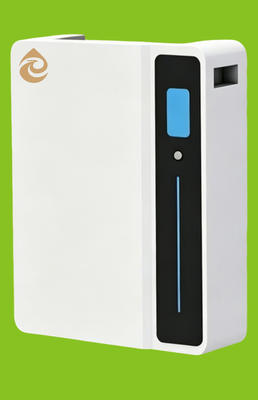

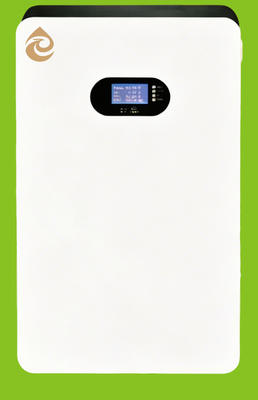

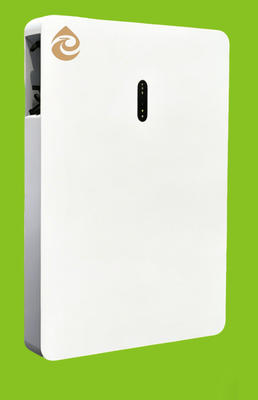

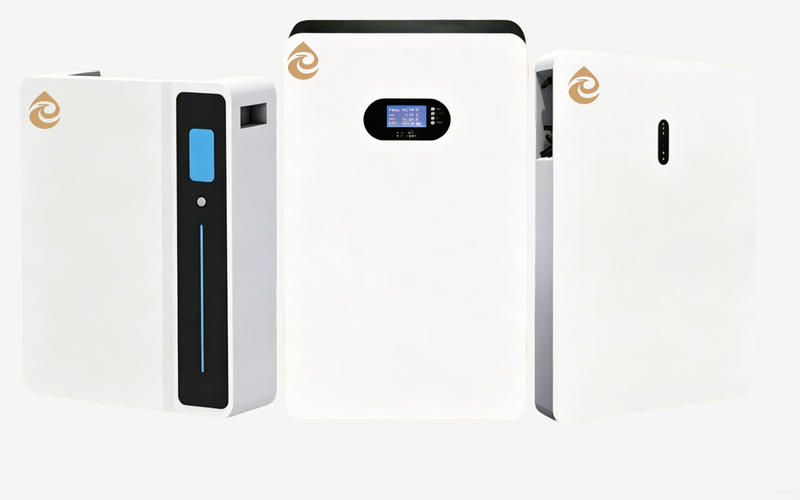

Wall-mounted energy storage battery（48V/100Ah 48V/200Ah 48V/314Ah）

Specifications of the products

Product Name:	Wall-mounted energy storage battery（48V/100Ah）	Wall-mounted energy storage battery（ 48V/200Ah ）	Wall-mounted energy storage battery（48V/314Ah）
Product Model:	5kWh/A1	10kWh/A1	16kWh/A1
Rated voltage：	48V/51.2V	48V/51.2V	48V/51.2V
Rated capacity：	100AH	200AH	314AH
Charge termination voltage：	54.0V/58.0V	54.0V/58.0V	54.0V/58.0V
Discharge cutoff voltage:	39.0V/42.0V	39.0V/42.0V	39.0V/42.0V
Communication method	RS485/CAN(bluetooth optional）	RS485/CAN(bluetooth optional）	RS485/CAN(bluetooth optional）
Size (mm)	600*410*140mm	850*485*145mm	850*420*230mm
Weight (kg)	43/45kg	84/89kg	105/110kg

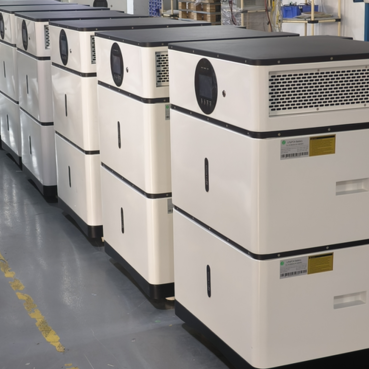

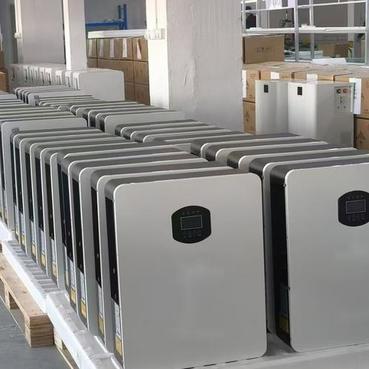

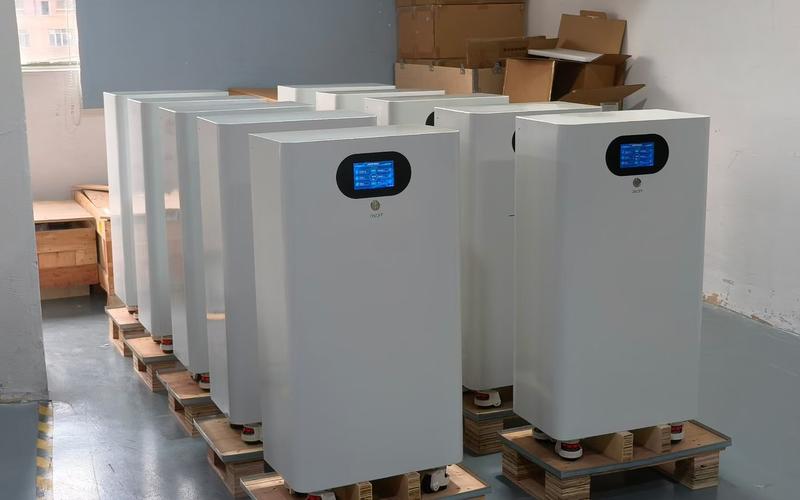

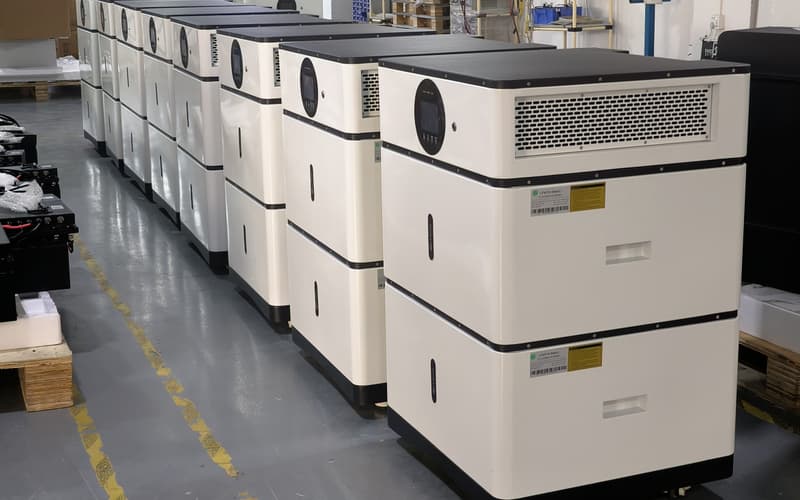

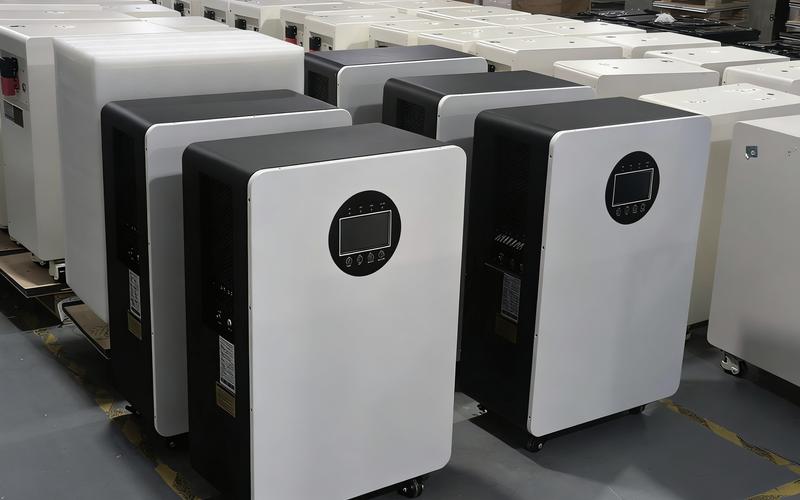

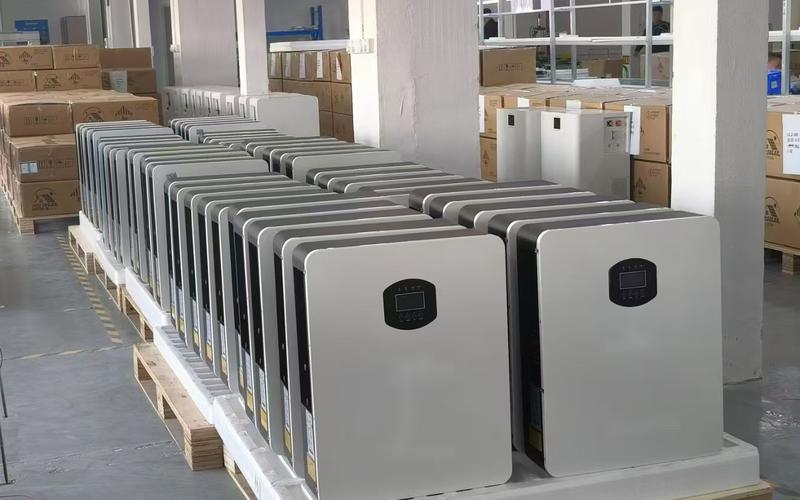

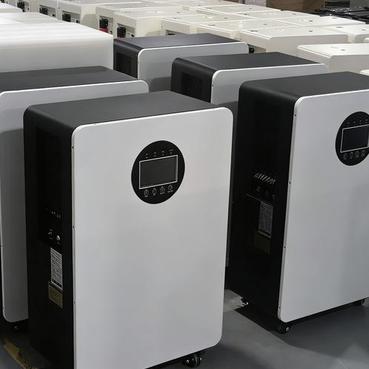

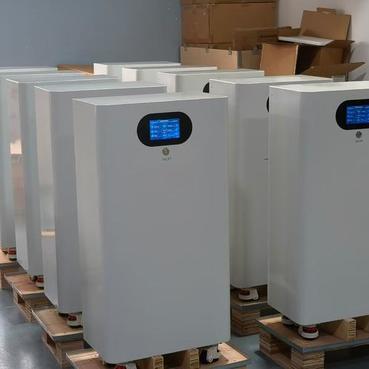

Factory production photos

Wall‑mounted energy storage battery FAQ

Q1: What is wall‑mounted energy storage battery?

A: Wall‑mounted energy‑storage battery is an all‑in‑one slim‑casing LFP lithium‑iron‑phosphate battery unit, specially designed to be fixed directly onto load‑bearing wall. It integrates battery cells, built‑in BMS, HMI display and protection components. It occupies zero floor space, mainly for residential & small‑commercial hybrid solar‑storage systems, self‑consumption optimization and power‑outage backup power。

Q2: Main system components

A: LFP lithium‑ion battery cells, built‑in BMS battery management system, circuit breakers & fuse protection, HMI touch‑display screen, wall‑mount metal bracket, communication ports (CAN/RS485), metal housing. Matched hybrid inverter is ordered separately。

Q3: Common specifications

A: Nominal voltage: 48V / 51.2V low‑voltage DC. Single‑unit typical capacity: 5kWh, 7.5kWh, 10kWh, 15kWh. Support limited parallel connection of multiple wall‑mount units for capacity expansion. Most models suit single‑phase household hybrid inverters。

Q4: Core advantages

A: 1. Space‑saving: hang on wall, no floor‑space occupation, ideal for garage, utility room and compact‑size houses. 2. Integrated compact slim appearance, good aesthetics for home‑use scenario. 3. Pre‑wired all‑in‑one unit, simple on‑site installation & commissioning. 4. Low‑voltage design, high safety for residential application. 5. Complete local display and APP remote‑monitoring function。

Q5: Installation requirements

A: Must be mounted on solid load‑bearing concrete wall; hollow‑wall / lightweight partition wall is NOT allowed. Install at proper height for easy operation and maintenance. Indoor‑installation only. Require professional certified electrician for wiring and reliable grounding. Reserve heat‑dissipation clearance around cabinet, avoid sealed enclosure。
