Suitable for most home, RV and marine solar panel installations, you can install solar panels on flat and pitched roofs made of tile, asphalt shingles, ceramic tile, panel shingles and standing seam boards. Provides toughness to withstand extreme weather conditions.
Order(MOQ) :
50Payment :
T/TProduct Origin :
ChinaLead Time :
15|
Installation Site: |
All Roof |
Surface Treatment: |
AA10 / AA15 / AA20 |
|
Place of Origin |
Xiamen,China |
Color: |
Anodized Silve r/ Electrolytic Black |
|
Material: |
Aluminium 6005 T5 |
Standard: |
JIS C 8955: 2017; AS/NZS ,1170; DIN1055; ASCE/SEI 7 -05; EN 1991-1-4:2005; International Building Code: IBC 2009 |
|
Surface Treatment: |
Anodized |
Warranty: |
10 years warranty |
ROI solar panel mounting brackets have pre-drilled mounting holes on the surface and include nuts and screws. The connection between each solar module panel can be easily realized. Easy to install, saves time and labor costs
Adjustable Solar Panels Mid Clamps FAQ

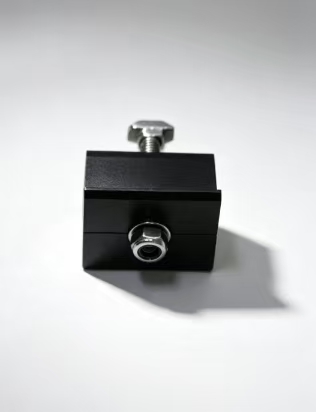

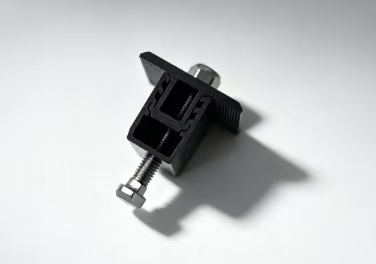

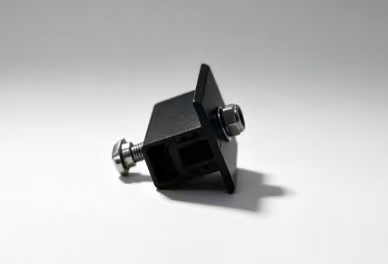

Q1: What is adjustable solar panel mid‑clamp?
A: It is a PV mounting accessory installed between two adjacent solar panels. Its adjustable clamping range fits different module frame thicknesses, firmly locking panels onto mounting rails for roof and ground solar projects.
Q2: What material is the adjustable mid‑clamp made of?
A: Main body is AL6005‑T5 anodized aluminum; matching bolts, T‑nuts and washers are SUS304 stainless steel, anti‑corrosion for coastal and harsh outdoor environments.
Q3: What frame thickness can this adjustable mid‑clamp fit?
A: Standard adjustable range covers 30‑40 mm module frame thickness, compatible with most mainstream solar panels. Custom range is available for special‑thickness frames.
Q4: Which mounting rails are compatible?
A: Fits most standard aluminum PV mounting rails. Please provide rail cross‑section drawing for confirmation if you use non‑standard rails.
