Solar Angled Roof Mounts for L‑feet FAQ

Q1: What is solar angled roof mount with L‑feet?

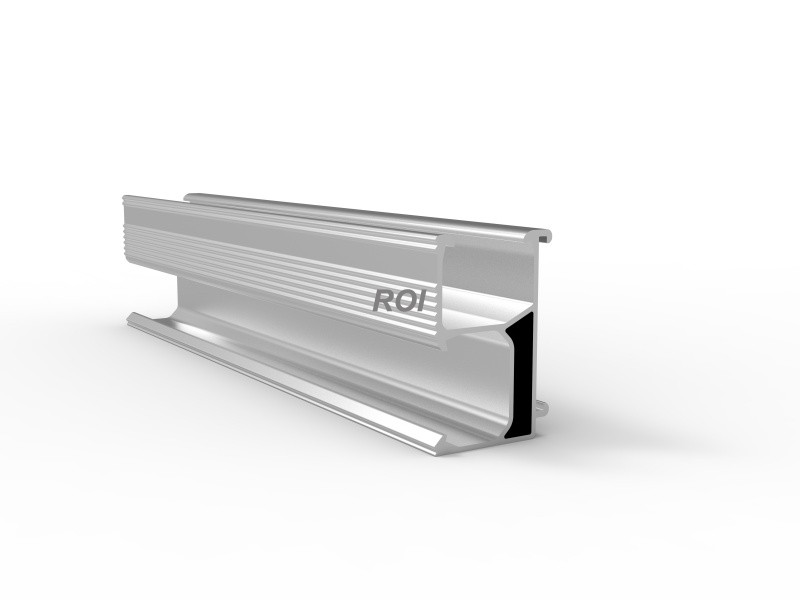

A: It is a rooftop PV racking solution designed for sloped / pitched roofs. It uses L‑shaped feet as the core support fitting, connecting roof hooks or roof base brackets with solar mounting rails. The L‑feet transfer the full PV array load to the roof structure, ensuring stable installation of solar modules on angled rooftops.

Q2: What are the main materials?

A: L‑feet: 6005‑T5 / 6063‑T5 anodized aluminum alloy. Roof hooks (if used): SUS304 stainless steel. Bolts, nuts and washers: SUS304 stainless steel. Supporting EPDM waterproof gaskets are included. Good anti‑corrosion and UV‑resistance for coastal, humid and harsh outdoor environments.

Q3: Which angled roof types are applicable?

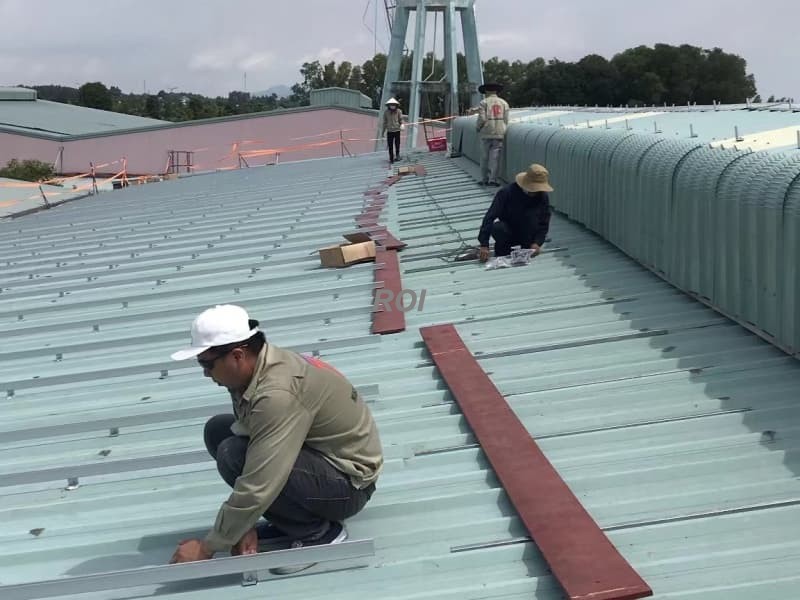

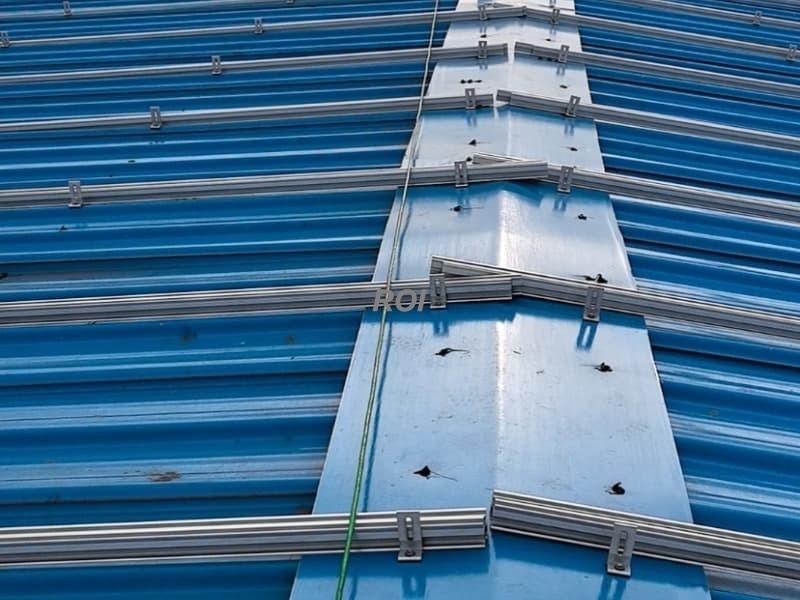

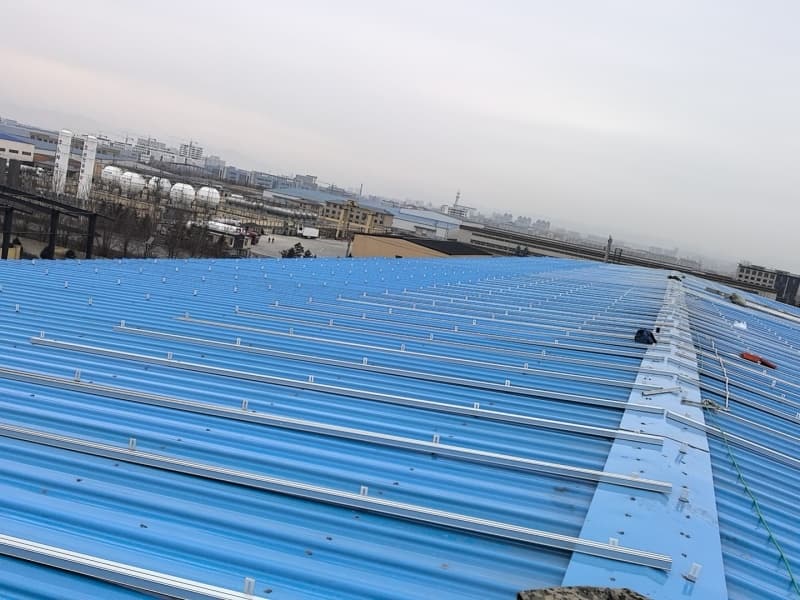

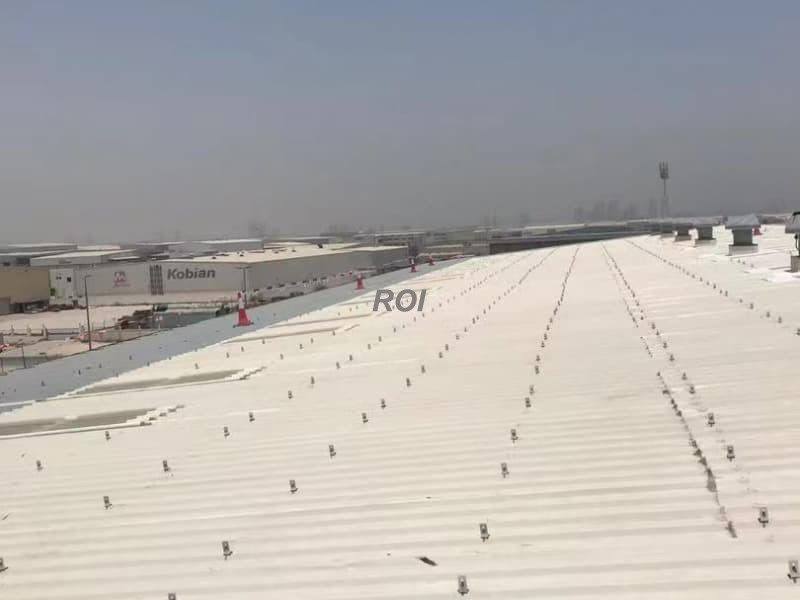

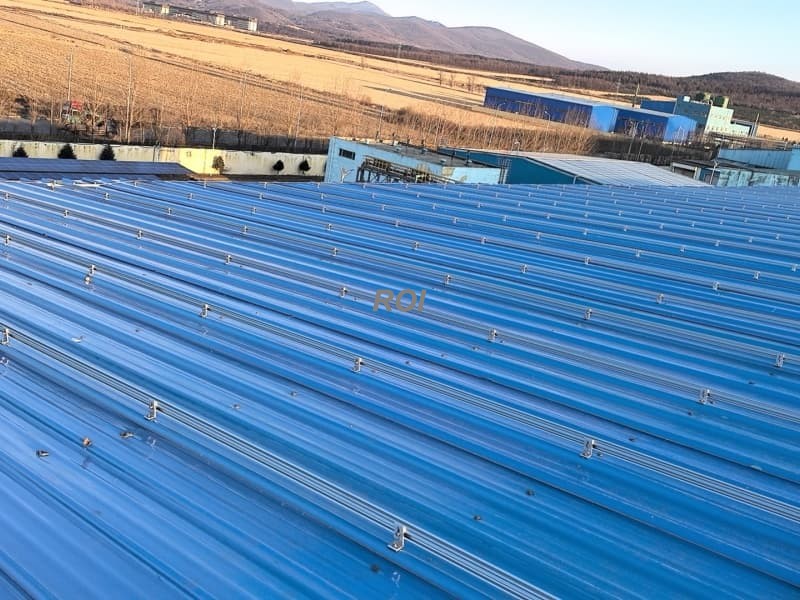

A: Suitable for pitched ceramic tile roof, concrete tile roof, trapezoidal metal roof and corrugated metal roof with slope. The underlying roof rafter or purlin structure must have sufficient load‑bearing capacity.

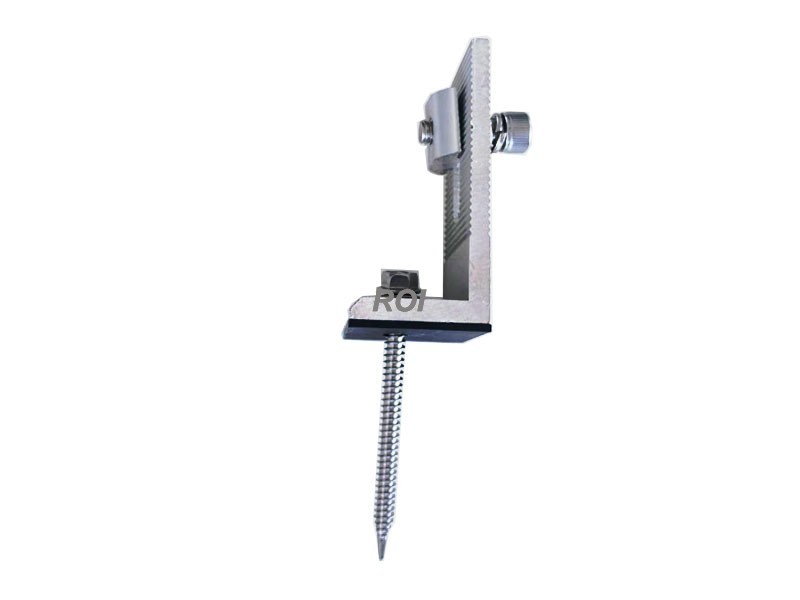

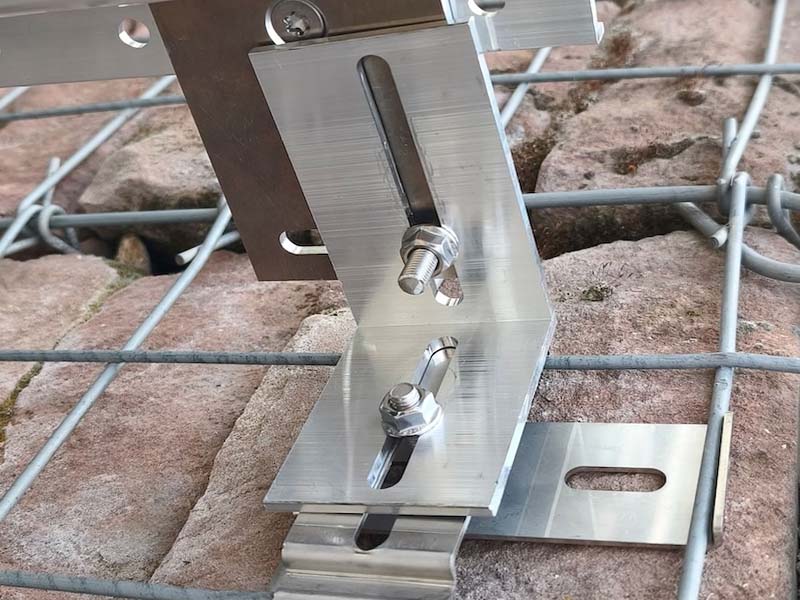

Q4: What is the function of L‑feet in angled roof mounting?

A: L‑feet serve as the vertical transition support between roof base (hook / bracket) and horizontal mounting rail. They create a clearance gap for ventilation and cable routing, and compensate minor unevenness of the roof surface.
