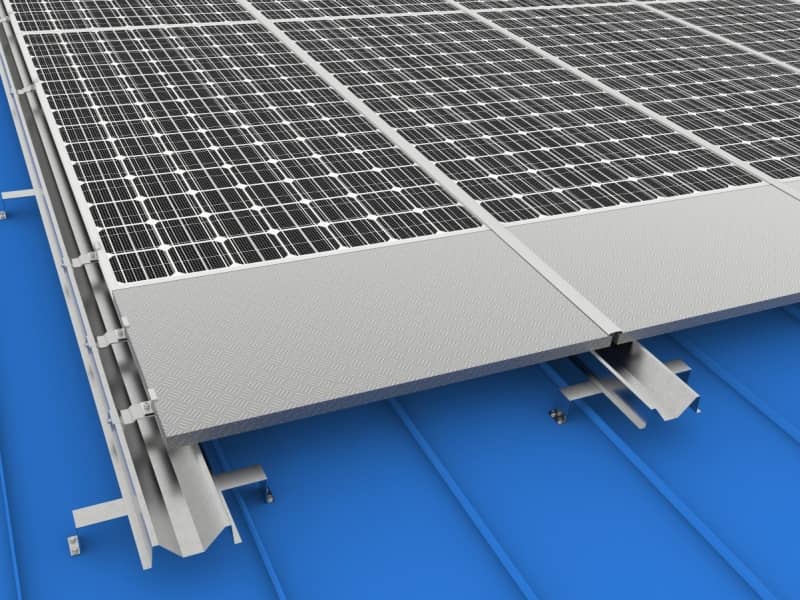

Rol Technology BlPV Roof Mount Solution is the more commoncategory of PV mounts, suitable for direct installation on rooftops orseparate racking frameworks.
Optimized for our dedicated framed BIPV modules. Not applicable for ordinary framed solar panels or frameless panels. For third‑party BIPV modules, please send frame cross‑section drawings for compatibility verification.
New‑built factory BIPV roof, warehouse BIPV canopy, commercial building rooftop, BIPV renovation for existing building roofs.
Payment :
T/TProduct Origin :
ChinaLead Time :
7-10 days

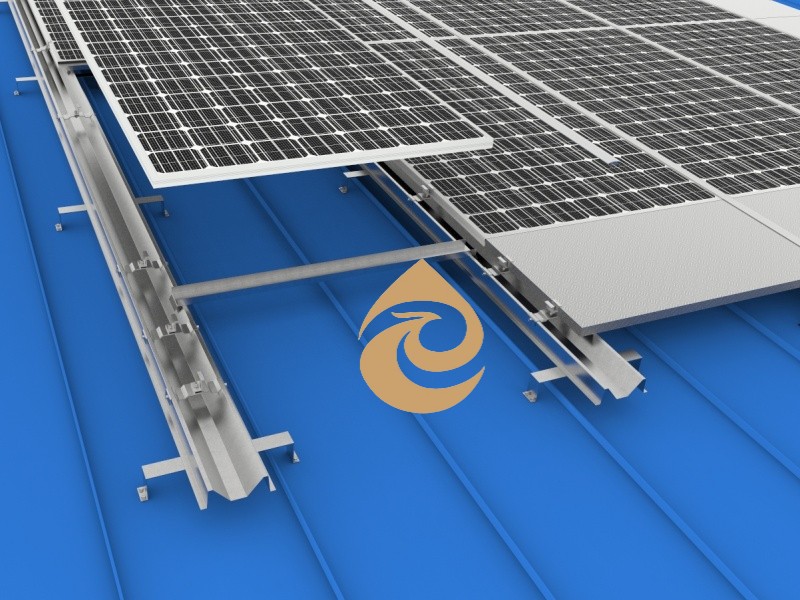

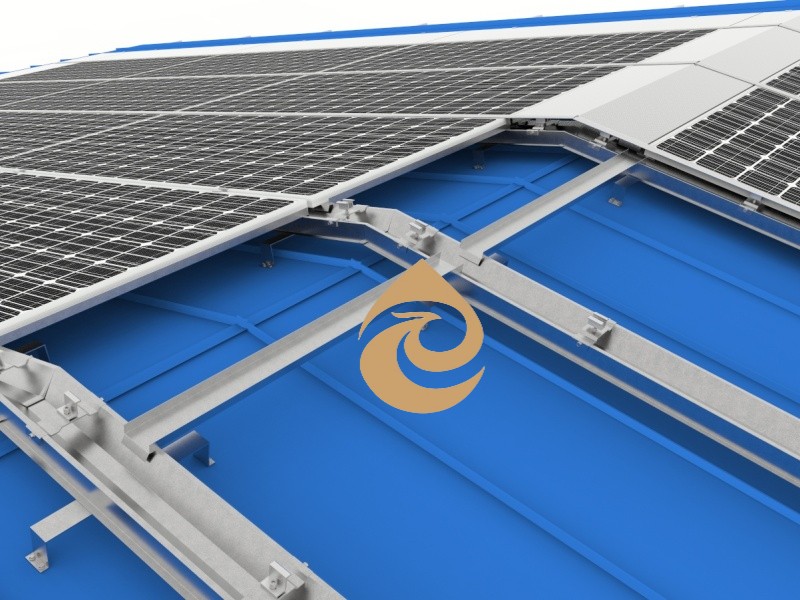

Rol has the advantages of low land occupation, high utilization efficiency, and low overall cost. Fix main support brackets on building structure; splice pre‑fabricated BIPV profiles; install water gutters and EPDM sealing strips; place and lock BIPV panels. All bolt‑connected, no on‑site welding or complex cutting required.
The whole system forms integrated drainage‑waterproof system by cooperation of aluminum water gutters and EPDM sealing gaskets. Good waterproof performance depends on standardized installation. Missing or mis‑installed gaskets will bring leakage risk.
Diverse Foundation
Cost-Effective
A: It is a pre‑fabricated modular BIPV roofing support system. Optimized structural design reduces on‑site cutting and welding work. It realizes fast installation of BIPV modules, water gutters and sealing parts. BIPV panels act as both power‑generating components and building roof covering, replacing traditional roof waterproof materials.
A: Main mounting profiles: 6005‑T5 / 6063‑T5 anodized aluminum alloy. Bolts and fasteners: SUS304 stainless steel. Supporting accessories include aluminum BIPV water gutters, EPDM sealing gaskets and connecting clamps. Excellent anti‑UV and anti‑corrosion performance for coastal, humid and high‑temperature outdoor environments.
A: Pre‑processed modular components, fewer on‑site machining operations. Simplified splicing and snap‑on structure greatly shorten construction period, save labor cost. Complete matching waterproof‑drainage accessories are supplied together in one package.
A: Recommended minimum roof slope ≥5°, to ensure smooth rainwater discharge and avoid water ponding at profile splicing joints.
