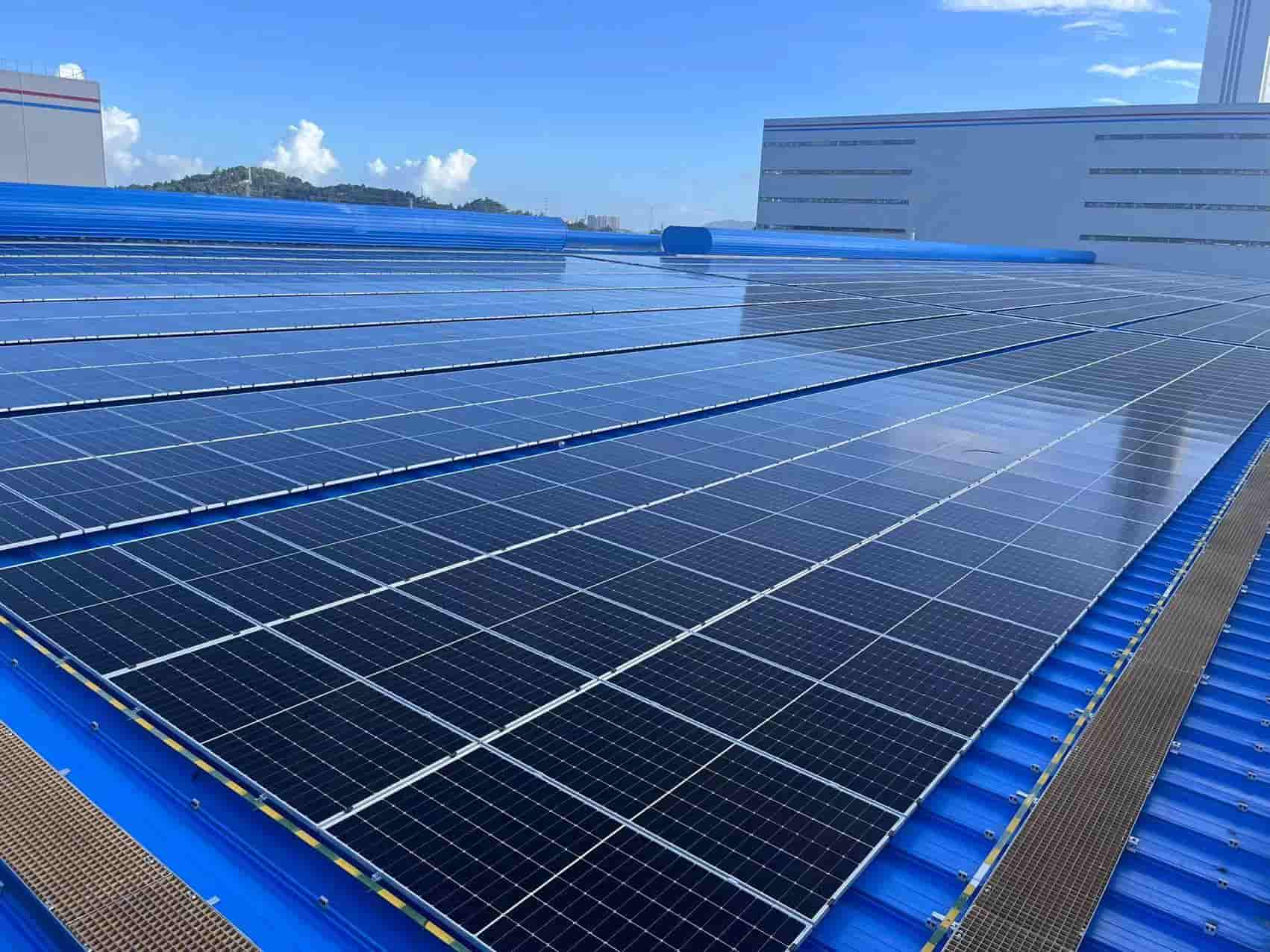

Rol Technology Roof Mount Solution is the more common category of PV mounts, suitable for direct installation on rooftops or separate racking frameworks.
The system itself is designed with waterproof‑oriented accessories. For penetration‑type installation, EPDM waterproof gaskets must be correctly installed. Leakage risk mainly comes from improper installation or missing sealing parts.
Roof load‑bearing capacity, rafter position and roof material shall be checked in advance. The mounting layout must comply with local wind‑load and snow‑load engineering requirements.
Payment :
T/TProduct Origin :
ChinaLead Time :
7-10 days
The type and size of the roof dictate suitable for the roof.

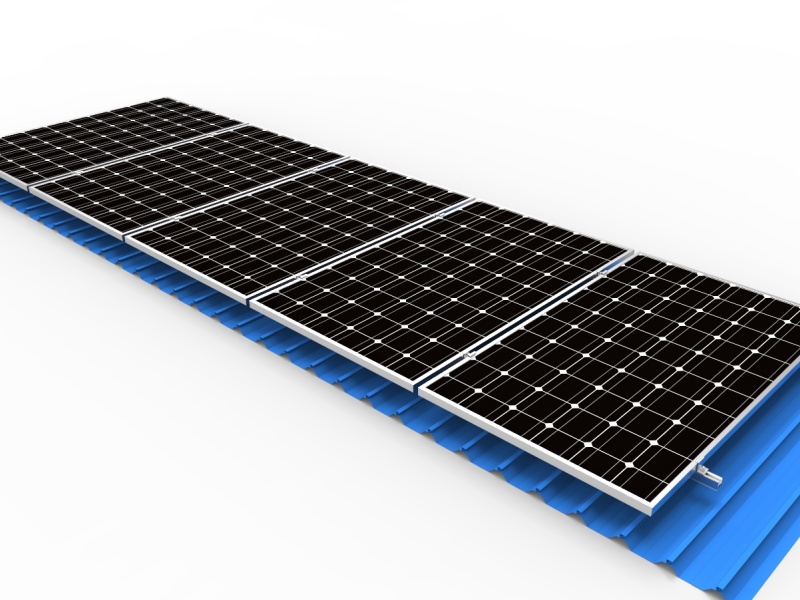

Roof-Mounted Design: A common PV mounting solution designed for direct installation on rooftops or on separate racking frameworks.

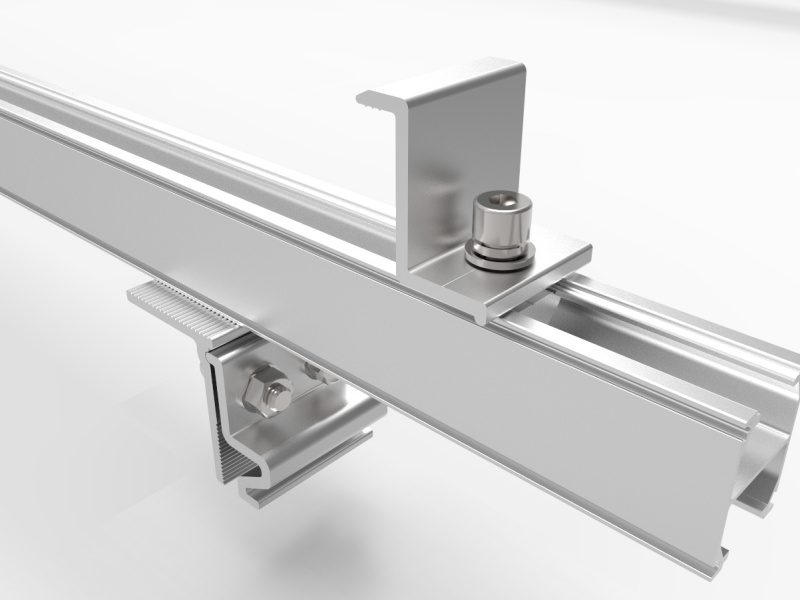

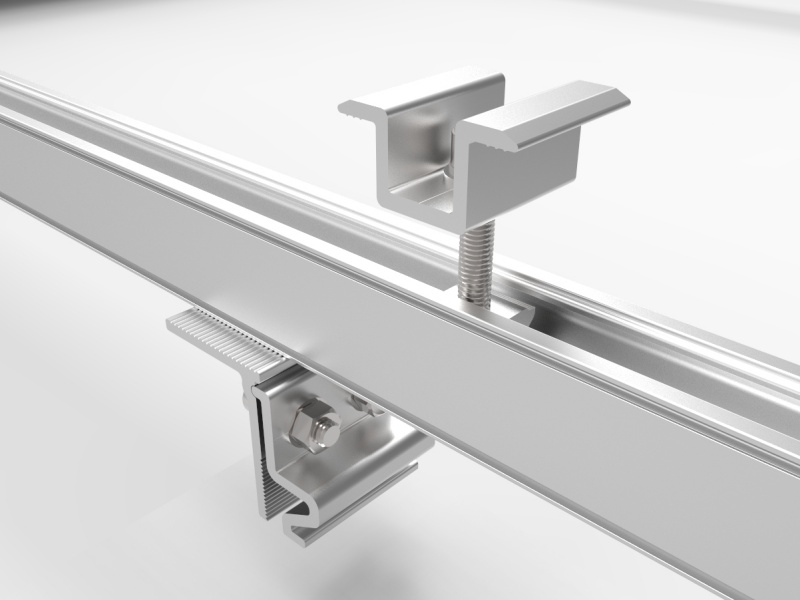

Versatile Mounting Options: Supports various mounting methods including clamps, hooks, ballasts, and rail.
Strong Adaptability, Wide Application
The product design fully considers the differences in geographical environment, climate conditions, and bracket types around the world.
In areas with strong winds, we have launched high-strength connecting components with enhanced locking performance; in areas with large temperature differences,
Selected materials with good thermal stability to avoid performance degradation caused by thermal expansion and contraction.
Whether it is a flat roof, sloped roof, or complex ground terrain, our accessories can provide a perfect matching solution.
|
Installation Site: |
Pitched Roof or Flat Roof |
Tilt Angle: |
0°~45° |
|
Wind Load: |
≤45m/s |
Applicable Module: |
Frame & Frame-less |
|
Snow Load: |
≤1.5KN/m2 |
Foundation: |
Clamps，Hooks or Concrete Base |
|
Material: |
Aluminium 6005 T5 & Carbon Steel |
Standard: |
JIS C 8955: 2017; AS/NZS ,1170; DIN1055; ASCE/SEI 7 -05; EN 1991-1-4:2005; International Building Code: IBC 2009 |
|
Surface Treatment: |
Anodizing & HDG & Zinc Magnesium Aluminum (ZAM) |
Warranty: |
10 years warranty |
|
Panel Orientation: |
Landscape & Portrait |
Usage Life: |
More than 25 years |
A: It is a complete series of rooftop PV racking solutions. With different matched brackets, hooks and clamps, it adapts to multiple roof structures, to fix solar modules firmly on rooftops for residential, commercial and industrial PV projects.

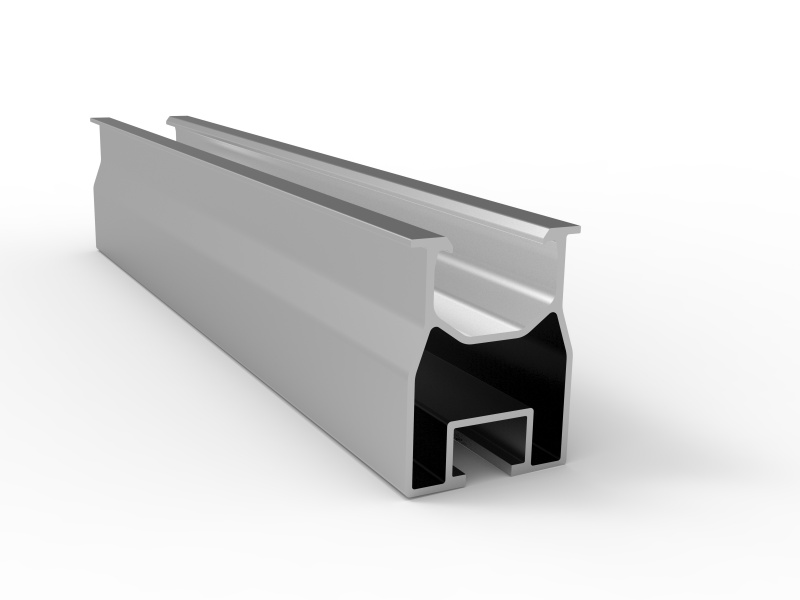

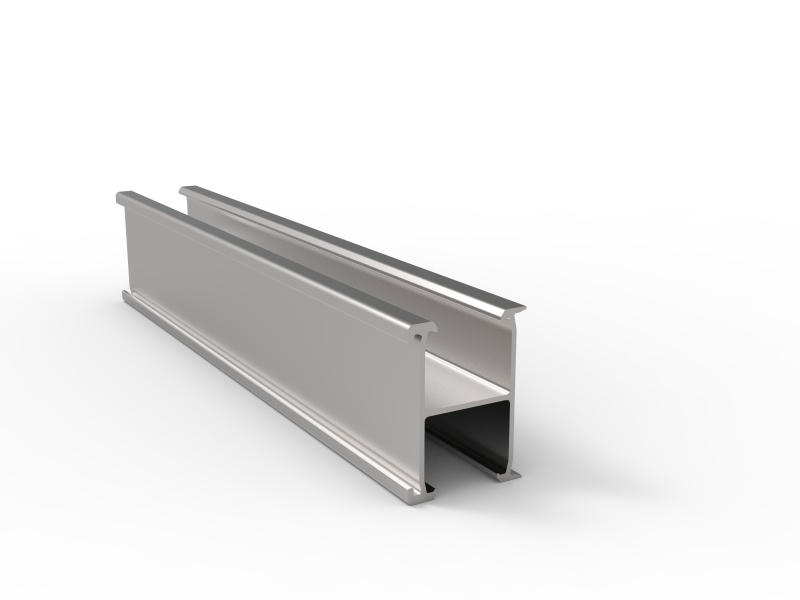

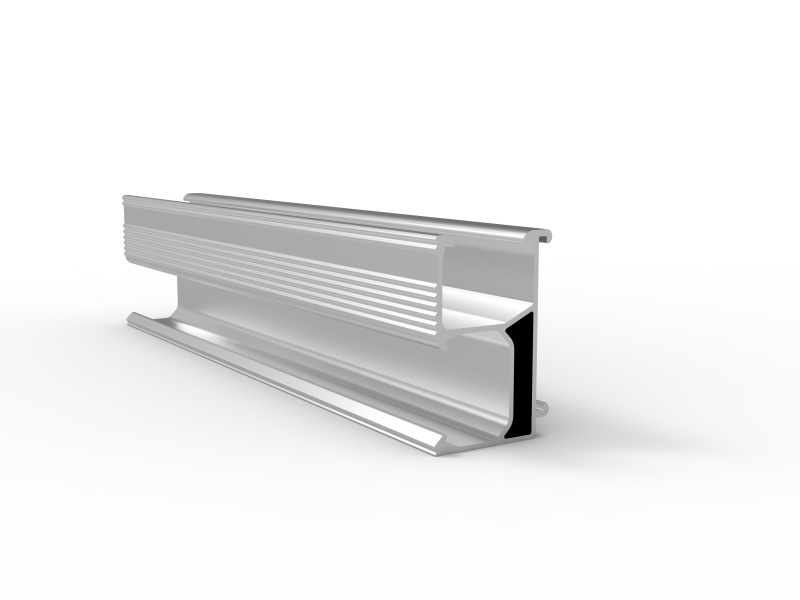

A: Main profiles: 6005‑T5 / 6063‑T5 anodized aluminum alloy. Bolts, hooks and fasteners: SUS304 stainless steel. Supporting accessories include EPDM waterproof gaskets, anti‑corrosion fittings for coastal and humid outdoor environments.
A: Trapezoidal metal roof, corrugated metal roof, standing‑seam metal roof, concrete tile roof, ceramic tile roof, flat concrete roof. Actual roof substrate strength needs to be verified before installation.

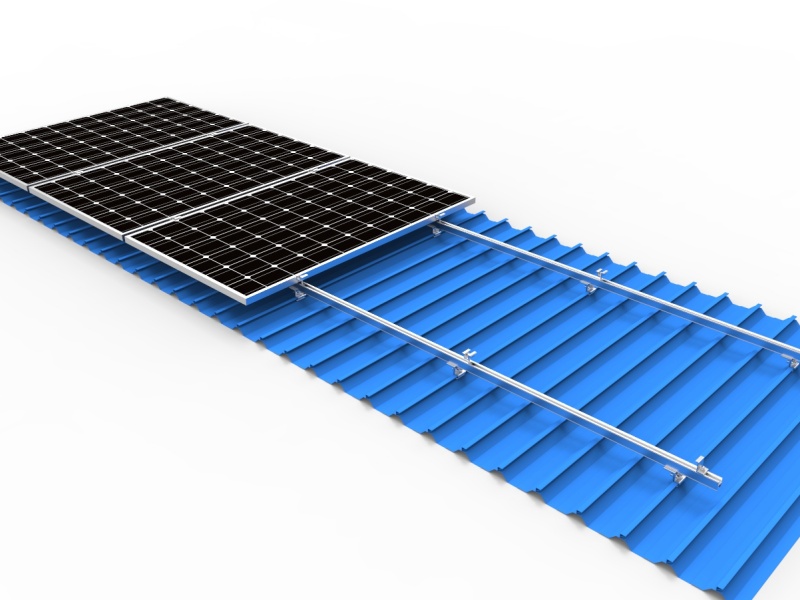

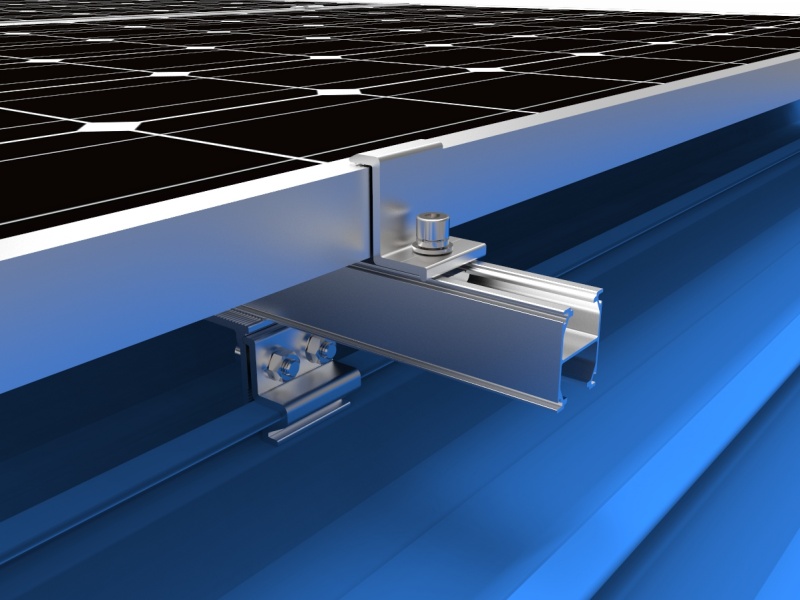

A:‑Tile roof: adopt stainless‑steel roof hooks + L‑feet + rails ‑Metal rib roof: adopt universal non‑penetration clamps ‑Standing‑seam roof: use special standing‑seam clamps ‑Flat concrete roof: adopt ballasted or adjustable tilted brackets
